PEL 115

AEMC PEL 115

  • 4 Voltage Inputs and 4 Current Inputs
  • Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations
  • Powered by the phase – 1,000 V AC/DC
  • 8GB Data Storage on SD Card (up to 32GB on SD-HC Card)
  • USB, Ethernet RJ45, or Wi-Fi (server) Communication
  • Quadruple digital display

Price range: $4,495.00 through $5,750.00

Get a QuoteGet More Info
SKU: PEL 115 Categories: , , , , , , , , , ,

Description

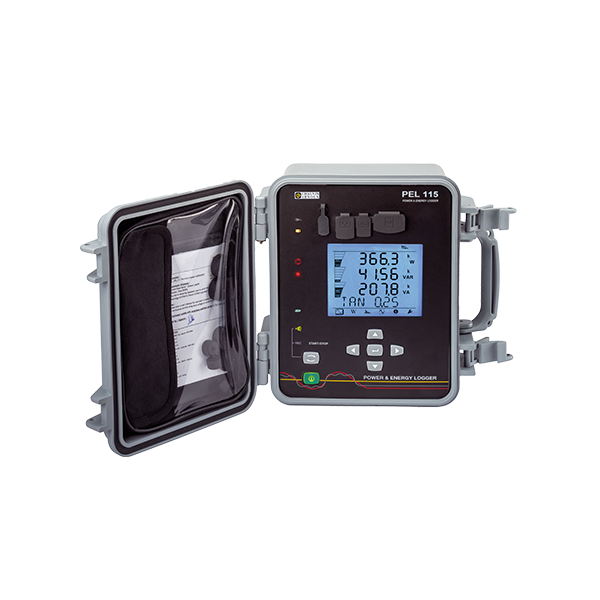

The PEL 115 measures and records all the power and energy values. Delivered in an IP67 site-proof case, the PEL 115 is ideal for use in the field or outdoors in multiple sectors:
• electricity generator: renewable energies, thermal energy, etc.
• industries: metallurgy, glassmaking, agri-food
• residential buildings, tertiary, etc.
• infrastructure and transport

Applications
• Energy audits
• Electrical diagnostics
• Industrial maintenance
• Simple, effective ergonomics
In its site-proof case with the mounting kit, it can be installed very easily at the top of an electricity pole. The large backlit display is easy to read in all circumstances. It is equipped with 1 voltage inputs and 4 current inputs.

RMS and DC measurements
• AC and/or DC voltages up to 1,000 V
• currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
• active, reactive and apparent power values
• active, reactive and apparent energy values
• fundamental and balanced active power values and unbalanced active power values
• measurements and characterization on motors (via Android application)
• breakdown of energy losses
• phase information: cos φ, tan Φ, power factor (PF)
• crest factor
• THD calculation for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements

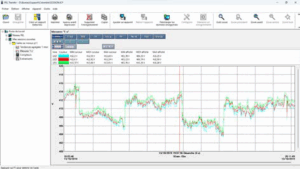

PEL Transfer software
With the PEL Transfer software you can:
• set up your PEL
• check the connections before recording begins
• download the measurements recorded in the PEL
• view the results of the various measurements and analyses
Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. – 8 tariff ranges).

Communication and networks
The PEL 110 models offer multiple communication modes:
– USB , the simplest link when not working remotely
– Ethernet RJ45 or Wi-fi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software
– Wi-fi (Access Point):
• Create a direct link between the PEL11x and your computer
• The Access Point (AP) mode supports up to 5 clients

A PEL 115 IS DELIVERED WITH 1 bag for the accessories, 5 x IP67 voltage cables, 5 lockable crocodile clips, 1 set of inserts/rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, PEL TRANSFER PC software & User’s Manual downloadable from our website, 1 Quick Start Guide.

Specifications

Models PEL 112 PEL 113 PEL 115
Display None Quadruple digital display
Types of Installations Single-phase, split phase, three-phase with or without neutral, and many other specific configurations
Number of Channels 3 voltage inputs, 3 current inputs (neutral current calculator) 4 voltage inputs, 4 current inputs
Measurements
Network frequencies DC, 50 Hz, 60 Hz and 400 Hz
Voltage (measurement ranges) 10.00 – 1,000 Vac / 100.00 – 1,000 Vdc
Current 5 mAac to 10 kAac / 50 mAdc to 5 kAdc
Calculated Measurements
Ratio Up to 650,000 V / up to 25,000 A
Power (P, Pf, P+, Punb, Qf, N, D, S) 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA
Energy Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018)
Phase cos φ, tan Φ, PF
Harmonics THD
Additional Functions
Phase order Yes
Min / Max Yes
Alarm Yes
Mounting Magnet Hook (Optional)
Recording
Acquisition Rate / Aggregation Period  5 measurements/s – 1 min to 60 min
Data Storage SD card, 8 GB (up to 32 GB on SD-HC card)
Communication USB, Ethernet, Wifi (Access point and Hotspot), IRD Server DataView® Synch
Power Supply 110 V – 250 V (+10 %, -15 %) at 50-60 Hz & 400 Hz Powered by the phase – 1,000 V AC/DC
Safety IEC 61010 600 V CAT IV and 1000 V CAT III IEC 61010 1000 V CAT IV
Mechanical Specifications
Dimensions 256 x 125 x 37 mm without sensor 245 x 270 x 180 mm without sensor
Weight 900 g 950 g <3400 g
Casing IP54 IP67
Operating Temperatures -20 °C to +50 °C 0 °C to +50 °C -20°C to +50 °C

Software

PEL Transfer Software

This application software can be used to set up the PEL 110s and process the energies.

A mathematical algorithm applied to the power measurement campaigns automatically provides a breakdown of all the energy values, highlighting any losses detected.

Users have everything they need to rank the priorities of their operations.

Energy consumption reports can be generated very simply.

  • Verification of the connections before starting to record
  • Download of the measurements recorded in the PELs
  • Display of the results of the various measurements and analyses

Android application

Use the Android application to view your PEL’s connection to the electrical network

Downloads

Software:

PEL Transfer – 07/2024, ZIP file

PEL Android App – Google Play Store

Manuals/Guides:

PEL 110 Series Brochure – PDF file

PEL 115 Manual – PDF file
