AO206

Brainchild AO206

  • 6 Analog Outputs
  • 16 Bits Resolution
  • Output signal: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
  • Accessory for use with Brainchild PR10, PR20, and PR30 paperless chart recorders

$418.00

Normal delivery 1-2 weeks

Get a QuoteGet More Info
SKU: AO206 Category:

Description

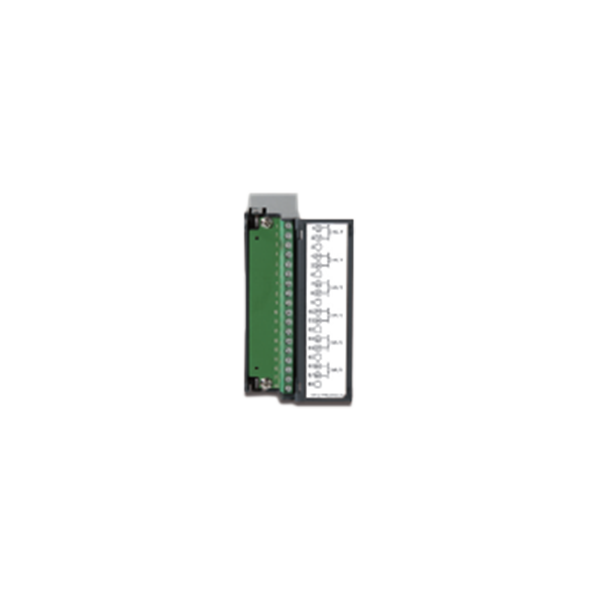

The Brainchild AO206 is an expandable analog output card for use with the Brainchild PR10, PR20, or PR30 paperless chart recorders. The card has 6 channel analog outputs. They are used for 4-20mA, 0-20mA current output, 0-5V, 1-5V, 0-10VDC voltage output.

There are 4 rear expansion slots in the PR10 and PR20 and 16 rear expansion slots in the PR30.

AO206 Specifications

Channels: 6 Channels per card
Output signal: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
Resolution: 16 bits
Accuracy: ±0.05% of Span ±0.0025% /˚C
Load Resistance: 0-500Ω (current), 10KΩ minimum (voltage)
Output Regulation: 0.01% for full load change
Output Setting Time: 0.1 second (stable to 99.9%)
Isolation Breakdown Voltage: 1500VAC at 50/60Hz for 1 minute
Integral Linearity Error: ±0.005% of Span
Temperature Effect: ±0.0025% of Span /˚C

Specifications

Channels: 6 Channels per card
Output signal: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
Resolution: 16 bits
Accuracy: ±0.05% of Span ±0.0025% /˚C
Load Resistance: 0-500Ω (current), 10KΩ minimum (voltage)
Output Regulation: 0.01% for full load change
Output Setting Time: 0.1 second (stable to 99.9%)
Isolation Breakdown Voltage: 1500VAC at 50/60Hz for 1 minute
Integral Linearity Error: ±0.005% of Span
Temperature Effect: ±0.0025% of Span /˚C
