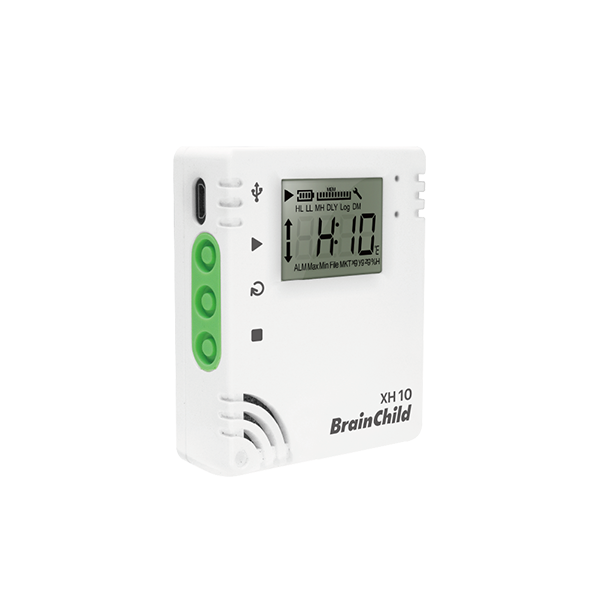

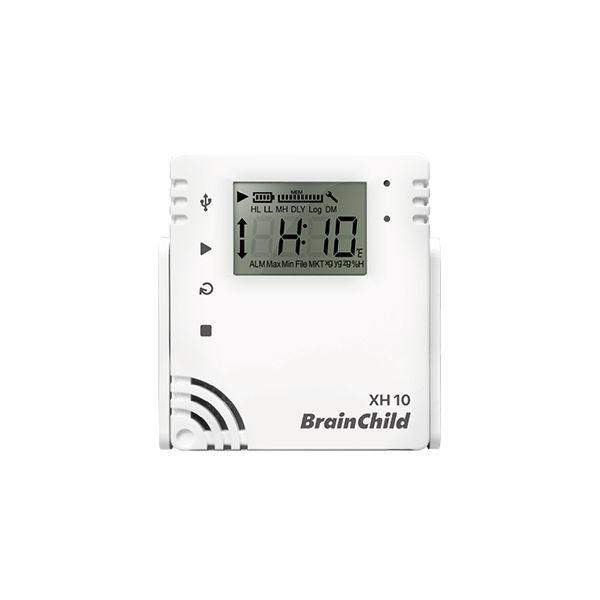

Brainchild XH10

• One-Key Start/Stop or set Start/Stop at a scheduled time
• Set parameters, download PDF reports, and supply power via USB
• Temperature and humidity statistical data & data tracking
• Temperature/humidity and device status on the LCD screen
• Configurable sampling rate
• User-friendly software, DLV (Data Logger Viewer)
• High power efficiency
• IP65 protection
• Display Mean Kinetic Temperature (MKT)

$175.00

Normal delivery 1-2 weeks

Description

The XH10 data logger is a compact, portable device for recording temperature and humidity. It provides temperature and humidity measurements suitable for various requirements and has multiple recording methods, data analysis capabilities, and report output functions. With the capability to store over 70,000 data points, it offers a comprehensive solution for monitoring environmental conditions over extended periods. The XH10 logger supports two types of sensors: internal and external, which can be used in different locations for various monitoring applications.

Key Features:

  • High Capacity Storage: The XH10 can store 70K+ data points, ensuring ample capacity for prolonged data collection without the need for frequent downloads.
  • Configurable Time Interval: Users have the flexibility to adjust the time interval at which data is recorded, allowing customization based on specific monitoring requirements.
  • Dual Power Supply Options: The XH10, equipped with battery and USB power supply options, offers versatility for various deployment scenarios.
  • Convenient Data Retrieval: Upon connecting the XH10 to a PC, users can easily download a detailed PDF report. Alternatively, the free Data Logger Viewer (DLV) software provides a user-friendly interface to view and analyze the data. Moreover, DLV enables users to export data to Excel for further analysis or sharing.

The XH10 is a perfect solution for recording and monitoring temperature and humidity in warehouses, vaccine refrigerators, cold chain management, temperature mapping, greenhouse planting, museums, and art galleries.

Specifications

Power Supply USB/ER14250 Battery (1 year battery life @ 1 min. log interval
USB Voltage (500mA) Min.: 4.5 VDC Normal: 5 VDC Max.: 5.5 VDC
Log Interval 1 sec~24 hrs
Temp. Display Resolution 0.1 °C/°F
Operating Range Temp.: -10°C (14°F)~60°C (122°F) Humidity: 10%RH~90%RH
Accuracy Temp.: 0°C ~ 50°C (±0.3°C), others ±0.5°C Humidity:20%~80%@25°C(±3%RH) others ±5%RH
Internal Memory Maximum 100 files (record start to stop as one file), maximum 79,872 logs, maximum 200,192 logs
Protective Class IP65
Dimensions 65.1 x 70 x 23.25mm
Weight 82.1 g (with battery, external sensor

Software

Data Logger Viewer (DLV) is available for download at www.brainchildtw.com. The software is easy to install and use. Users must configure the new XHLogger before using it.

  • List all XHLoggers connected to the PC and display the status.
  • Users can configure the Name, Time Zoom, and Start/Stop modes of the XHLogger on the Parameter page.
  • Download the records to your PC and review the data.
  • Users can use the recorded data to generate graphics to compare with data from other XHLoggers.

Downloads

Manuals

XH10 & XH11 User Manual (PDF file)
XH10 & XH11 Quick Start Guide (PDF file)

Software

XH10 Firmware – V2.1.0.7 (ZIP file)

Data Logger Viewer – V2.1.0.18 (ZIP file)
