HiTemp140-M12

Measurement Range of -200°C to +850°C
±0.1 °C (±0.18 °F) Accuracy
M12 RTD Probe Connector
User Replaceable Battery
Programmable Start and Stop Time
This product is made to order and is not returnable or cancellable
An IFC400 USB Docking Station is required and sold separately

Download Specification Sheet

$599.00

Additional Equipment Required

IFC400 USB Docking Station - $ | Add to cart

SKU: N/A Categories: Battery Powered Data Loggers, Cryogenic Temperature Monitoring, Environmental Data Loggers, Food Temperature Monitoring, Industrial Data Loggers, Industrial Temperature Monitoring, Laboratory Temperature Monitoring, MadgeTech, Pharmaceutical Temperature Monitoring, RTD Data Loggers, Temperature, Temperature Data Loggers, Ultra Low Temperature Monitoring

Description

HiTemp140-M12 High Temperature Data Logger with an M12 Probe Connector

The HiTemp140-M12 is a rugged and versatile high temperature data logger featuring an M12 probe connector. Compatible with a wide variety of M12 RTD probe styles, this data logger is capable of measuring up to 850°C (probe dependent).

All of MadgeTech’s HiTemp140 data loggers are made of food grade stainless steel and can be placed in environments with temperatures as high as 140°C. The operating range of the data logger body can be extended to higher temperatures when used with MadgeTech’s thermal barrier options and suitable probe.

A wide selection of compatible M12 probes are available on the market to choose from, making the HiTemp140-M12 the most dynamic data logger of its kind. With the ability to change probes as needed, this device satisfies a multitude of application needs with one powerful data logger versus the need for multiple loggers.

Using the MadgeTech 4 Software, starting, stopping and downloading the HiTemp140-M12 is simple and easy. To use, simply place the HiTemp140-M12 in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.

Features

Measurement Range of -200°C to +850°C
±0.1 °C (±0.18 °F) Accuracy
M12 Probe Connector
User Replaceable Battery
Trigger Settings
Programmable Start and Stop Time
Battery Life Indicator

HiTemp140-M12 Benefits

Interchangeable Probe Connector for Multipurpose Use
Simple Setup and Installation
Minimal Long-Term Maintenance

Applications

Depyrogenation
Autoclave Verification
Food Preparation and Processing
Environmental Studies
Well Monitoring
Washer Disinfectors
Pasteurization
Many More Applications (Probe Dependent)

Specifications

TEMPERATURE
Temperature Sensor	Various RTD Probes with M12 Connector (Sold Separately)
Probe Measurement Range	18 Ω to 400 Ω, (-200 °C to +850 °C / -328 °F to +1562 °F) (Probe Dependent)
	BODY OF LOGGER CANNOT EXCEED 140 °C
Temperature Resolution	0.0001 Ω, (0.01 °C / 0.018 °F) (Probe Dependent)
Calibrated Accuracy	±0.0462 Ω (18 Ω to 200 Ω)
	±0.1 °C (-200 °C to +265 °C / -328 °F to +509 °F)
	±0.1% of Reading (+265 °C to 850 °C / +509 °F to 1562 °F) (Probe Dependent)
GENERAL
Start Modes	Software programmable immediate start
	Delay start up to 18 months in advance
Stop Modes	Manual or Timed (specific date and time)
Real Time Recording	May be used with PC to monitor and record data in real time
Password Protection	An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Memory	21,504 readings
Wrap Around	Yes
Reading Rate	4 readings per second up to 1 reading every 24 hours
Trigger Settings	High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers
Readings in Trigger Settings Mode	5,864 readings
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device
Battery Type	3.6V high-temperature lithium battery included; user replaceable
Battery Life	1 year typical (1 minute reading rate at 25 °C/77 °F)
Data Format	Date and time stamped °C, K, °F, °R, or mV
Time Accuracy	±1 minute/month at 25 °C (77 °F)
Computer Interface	IFC400 OR IFC406 USB docking station and adapter required; 125,000 baud
Operating System Compatibility	Windows XP SP3 or later
Software Compatibility	MadgeTech Standard Software version 4.2.5.0 or later.
	MadgeTech Secure Software version 4.2.4.0 or later.
Operating Environment	-40 °C to +140 °C (-40 °F to +284 °F)
	0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA
IP Rating	IP40 – logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K).
Dimensions (Body)	2.15 in x 0.97 in x 0.97 in
	(54.5 mm x 24.6 mm x 24.6 mm)
Dimensions (Probe)	Probe Dependent
Weight	3 oz (85 g)
Material	316 Stainless Steel, Radel
Approvals	CE

Software

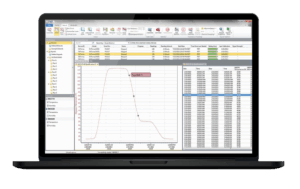

MadgeTech 4 Software

The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
