Lithium polymer battery (1000 mAh), rechargeable via USB connection
$1,360
165B52
IP65
122 x 92 x 70 mm, approx. 530 g
PC, encapsulated, splashproof cast aluminum case
Replaceable Li-SOCI2 batteries (3.6 V, 2 x 7700 mAh)
$1,745
*Price above is for the unit only. Contact us to configure sensor and accessory options for your application Calibration is available. Contact us for pricing
Description
MSR165 Data Logger for Vibration, Shock, Jolts
MSR’s best-selling data logger for vibration and shocks! The MSR165 is a robust mini data logger, capable of taking 1600 acceleration measurements per second for up to five years.
Over one billion measurement values
The MSR165 data logger can monitor shocks up to ±15 g or up to ±200 g; 32 measured values are recorded even before the shock event takes place. The memory is capable of storing over two million measured values, which is sufficient for recording more than 10,000 shocks; the memory capacity of the logger can be extended to more than 1 billion measured values by using a microSD card. All measured values can be rapidly transferred to a PC or laptop via the USB interface or microSD card for data analysis purposes.
Ideal for long-term measurements
The MSR165 has extremely low power requirements. With the lithium-polymer battery (1000 mAh), you can monitor shocks for up to six months, with replaceable Li-SOC2 batteries even for up to five years. The MSR power pack, which can be ordered separately, is another option to increase the recording period: The autonomous charging station recharges the internal battery of the data logger during operation, allowing you to record data for up to six times longer.
MSR ShockViewer for analyzing shocks and vibrations
The MSR165 data logger comes with MSR PC software for configuring and analyzing the data. For an extensive analysis and graphical representation of the data recorded in shock mode and to automatically create reports, with the MSR165 firmware version 2.00 and later versions, the MSR ShockViewer analysis software, which is specifically tailored to the requirements of transportation monitoring, is at your disposal.
Specifications
Color: Blue, anthracite
Medium: Air, various liquids
Integrated Sensor: 3-axis digital accelerometer (13 bit resolution), ±15 g or ±200 g
Memory capacity: Over 2 million measurement values, expandable with microSD card over 1 billion. Push-button: Set a bookmark or start and stop recording. LED:
Blue: Record Indicator
Red: Alarm Indicator
Yellow: Battery charge indicator
Power supply: Lithium-polymer battery (1000 mAh), rechargeable via USB port, recording period up to 6 months or replaceable batteries (Li-SOCl2, 3.6 V, 2 x 7700 mAh), for recordings up to 5 years. Interface: USB PC software: MSR PC Software (standard), MSR ShockViewer analysis software, System requirements: Windows 7 or higher, USB port. Operation conditions:
Temperature: -20°C to +65°C
Storage conditions:
Temperature: +5°C to +45°C (ideal storage conditions for the battery)
Humidity: 10 to 95 % relative humidity, non-condensing
Standards: The MSR165 complies with EU-Directives RoHS/WEEE.
Software
MSR PC Software (Standard)
Configuration and analysis software for MSR data loggers
The configuration and readout of the MSR data loggers, as well as the export of measurement data and the evaluation of the recorded data, are carried out with the help of the powerful MSR PC software. When you purchase an MSR data logger, the latest PC software is supplied free of charge.
MSR PC software package: Setup, Reader, Online, Viewer
The user-friendly MSR PC software consists of the four main programs, MSR Setup, Reader, Online, and Viewer, as well as several auxiliary programs that allow, among other things, export to MATLAB or CSV file format.
MSR165 ShockViewer Software
In addition to the standard MSR PC software for configuring and evaluating the data of the MSR165 shock and vibration data logger, there is also the MSR ShockViewer analysis software, which provides a detailed analysis of shock events.
The intuitive analysis software facilitates the graphical presentation and extensive data analysis of the values recorded by the MSR165 data logger in shock mode. The MSR ShockViewer is capable of quickly processing millions of data points relating to dynamic processes, such as critical shock events that may occur during transports.

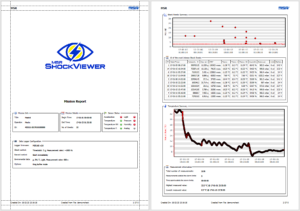

Automatic report generation
A single click is sufficient to call up a compact report of the imported data.
The report has a cover page with an informative summary of the measurement file.
Each of the sensors has its own summary block with a measurement chart and some useful information, for instance, on alarm values.
The report can also be configured individually.
The MSR logo can be exchanged for your own company logo on the cover page and in the header.
Tutorials on the MSR ShockViewer software
Our short tutorials introduce you to working with the MSR ShockViewer software. The software for MSR165 data loggers, which specializes in the analysis of shock events and impacts, enables you to clearly display extensive measurement data as well as quickly analyze and conclusively document critical events.
IP60
IP65
Configuration and analysis software for MSR data loggers
In addition to the standard MSR PC software for configuring and evaluating the data of the MSR165 shock and vibration data logger, there is also the
