Novus TxIsoRail-HRT

  • Full compatibility with worldwide HART® devices
  • Standardized supervision with standardized software
  • Fully configurable through the current loop
  • Galvanic surge protection

Call for configuration and price. 1-800-956-4437

Get a QuoteGet More Info

SKU: 8808016100 Categories: ,

Description

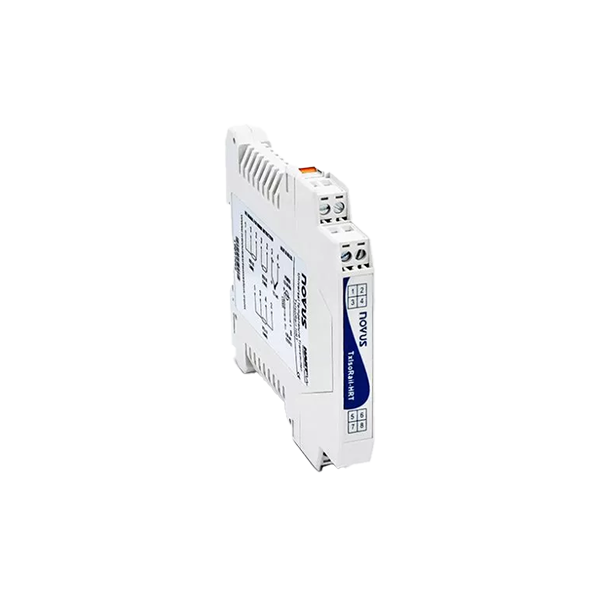

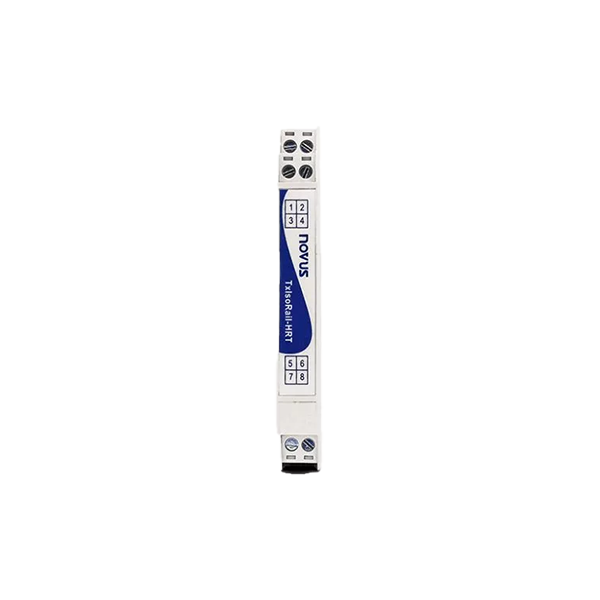

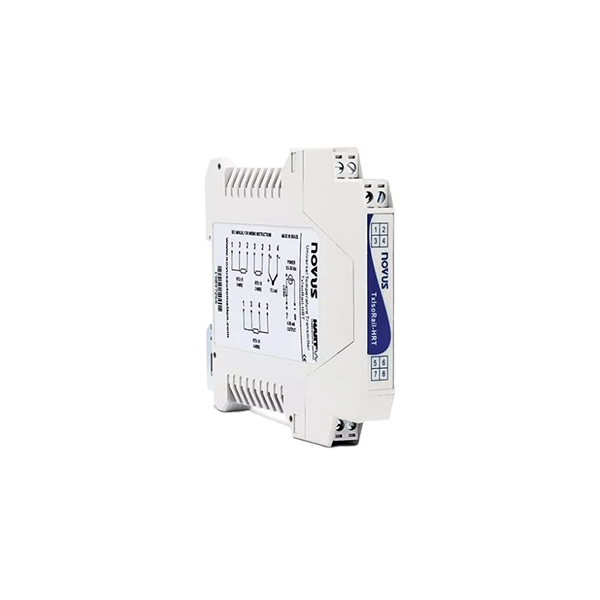

Novus TxIsoRail-HRT HART® Temperature Transmitter

The TxIsoRail-HRT temperature transmitter combines the proven quality of HART® certification with the robustness of NOVUS devices. The transmitter is compatible with HART® certified devices and it has electrical isolation between input and output, supporting voltage surges up to 1.5 kVrms. Its great differential is the total configuration through the two 4-20 mA current loop wires, which means more features for device configuration and monitoring.

By using a worldwide known protocol with more than 40 million field instruments supporting HART® technology, NOVUS’s temperature transmitter TxIsoRail-HRT enables the use of standard HART® configuration and supervision software that provides flexibility to users.

Features:

  • Full compatibility with worldwide HART® devices
  • Standardized supervision with standardized software
  • Fully configurable through the current loop
  • Galvanic surge protection

These transmitters stand out due to the total flexibility of configuration through the two-wire 4-20 mA loop, allowing more resources for the configuration and the monitoring of the device. In this way, it is possible to perform interactions with the devices remotely, eliminating the need to remove them from the plant to change configuration. By using a world-renowned protocol with more than 40 million field instruments supporting this technology, NOVUS TxIsoRail-HRT temperature transmitters enable the use of standardized HART® configuration and monitoring software, providing reliability and flexibility to users.

Specifications

Input Type Thermocouples J, K, T, N, R, S, B, E, Pt100, Pt1000, NTC and 0-50 mV
Precision Typical: Maximum:
Pt1000 / mV: 0.07 % span Pt1000 / mV:  0.15 % span
Pt100: 0.08 % span Pt100: 0.15 % span
T/C: 0.07 % span ±1 °C T/C: 0.15 % span ±1 °C
NTC: 0.2 °C NTC:  0.45 °C
Output Type 4-20 mA
Output Resolution 0.25 µA
Thermal Drift < 0.05 % / 25 °C
Input-Output Isolation 1.5 kVrms
Electrical Protection Reverse polarity
Version of HART® protocol HART V7, compatible with HART V5
Configuration Interface Through TxConfig-HRT adapter or Handheld HART® certified
Software of Configuration TxConfig II or HART® certified software
Certifications and Approvals CE, NAMUR NE43, RoHS, Reach, HART®
Electromagnetic Compatibility CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 and EN 61000-4-8
Conditions of Operation -40 to 85 °C / 0 to 90% RH
Power Supply Loop powered, 4-20 mA, (8,5 – 36 Vdc)

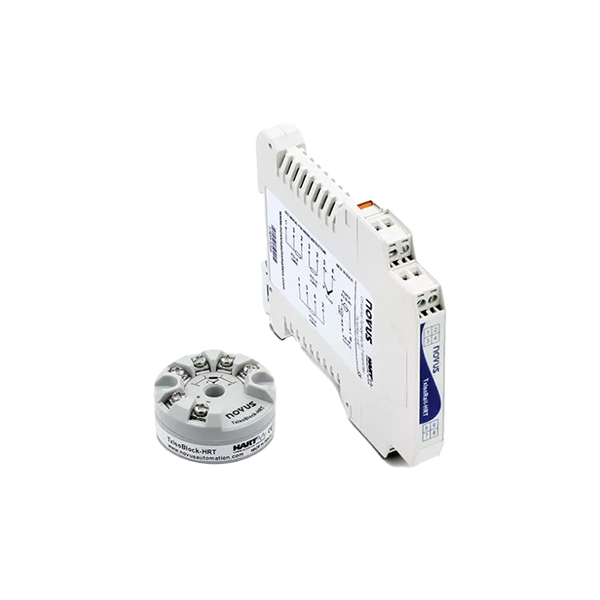

Dimensions 114 x 99.5 mm (4.49 x 3.92 in) (DIN rail model)

20.5 x 43.5 mm (0.81 x 1.71 in) (head mount model)
Enclosure ABS UL94-HB (DIN rail model)

Polyamide (head mount model)

Software

SigNow PC

Software for Sensors and Transmitters Configuration

Intuitive, the SigNow Software makes it possible to quickly and easily configure NOVUS transmitters. The software allows you to save the configuration to a file to be used as a backup or to be sent to other devices.
It has a diagnostic function to check if the equipment is reading the process variable correctly.

SigNow Mobile

App for Sensors and Transmitters Configuration

Intuitive, the SigNow Mobile application makes it possible to quickly and easily configure NOVUS transmitters.
The app allows you to save the configuration to a file to be used as a backup or to be sent to other devices.
It has a diagnostic function to check if the equipment is reading the process variable correctly. The application allows the mobile device itself to power the device to be configured, through a USB OTG adapter, facilitating use in the field.
