Description
RN320-CDT CO2 Transmitter via LoRaWAN

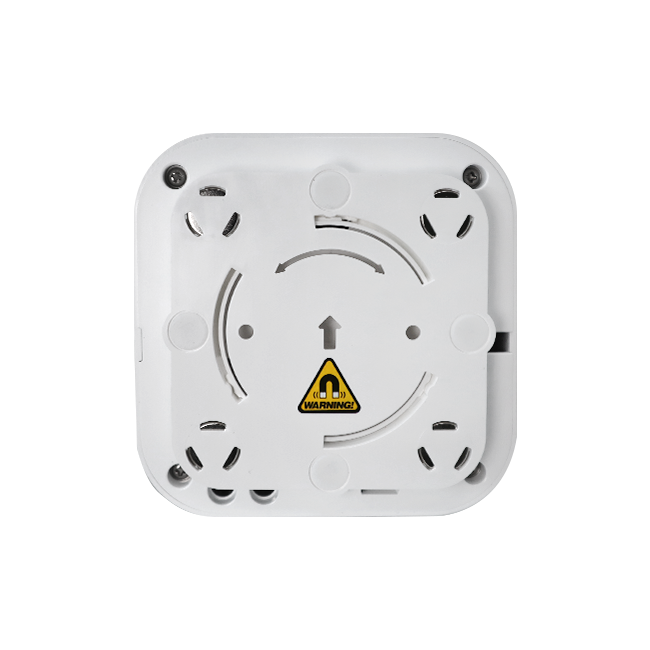

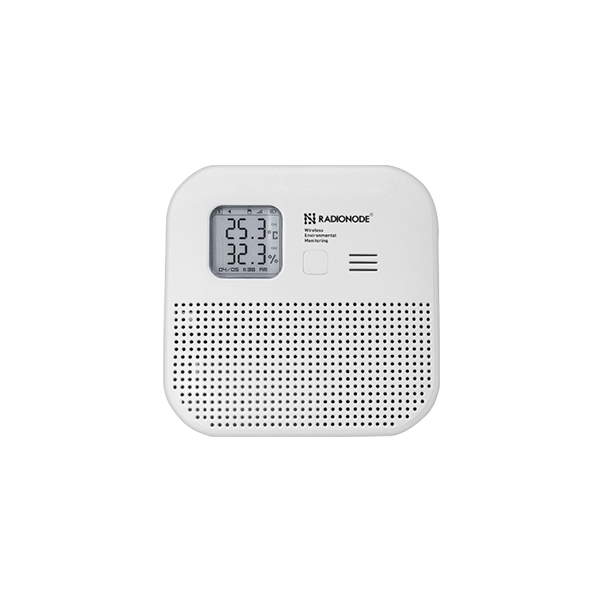

The Radionode RN320-CDT is a battery-operated wireless environmental sensor. It is professionally designed to include an E-paper display, microSD card, loud buzzer, three-color LED, and unbelievable battery capacity. Using Lorawan® technology, Radionode customers can easily set up a wide range of sensor networks in a short time. The user can intuitively check the current status of the sensor using the three-color LED and ePaper Display. Also, the loud buzzer is the easiest and most useful feature to quickly alert nearby users of danger. The RN320 model has a retransmission function, so it does not drop measurement samples. You can easily register your product to the Radionode365 service by scanning the QR code on the back of the device. With Radionode365, you can utilize all aspects of remote monitoring, even in areas with poor radio conditions. Plus, you can keep all your data permanently by using the built-in microSD card. This RN320-CDT model has an embedded CO2, TVOC, and Temperature/Humidity sensor with a 17000mAh battery. The RN320-CDT device can be operated for up to 2 years.
Includes:
- RN320-CDT Wireless CO2 Transmitter
- C-Type Battery (2EA)
- Detachable Wall Bracket
- USB-C Cable
- Option to Add A Metal Desktop Bracket
Applications:
- Agricultural Greenhouses
- Building Management
- Indoor Air Quality Management
- Semiconductor Production Lines
Note: this device requires a LoRaWAN Gateway
Specifications
| Wireless Telecommunications |
LoRaWAN V1.0.3, OTAA/ABP Class A |
|
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
|
TX:20dBm |
|
Sensitivity: -137 dBm @ 300 bps |
| Internal Sensor |
CH1: CO2 (ppm) |
|
CH2: TVOC (ug/m3) |
|
CH3: Temp (°C/F) |
|
CH4: RH (%) |
| Resolution |
Temp. Resolution: 0.1°C |
|
R.H. Resolution: 0.1%RH |
| Operation Conditions |
-20 ~ 80°C / 5 ~ 95% (Non condensing ) |
| Material |
PC, PS |
| Buzzer |
97dBA @10cm |
| Display |
Electronic ink display, 200×200 Pixel 1.54 Inch |
|
Operating condition: 2~50°C (Display off is recommended below 0°C) |
| LED Status |
GREEN: Good |
|
ORANGE: Moderate |
|
RED: Bad |
|
*Configurable Parameter |
| External Memory |
Optional (16GB microSD, permanent logging) |
| Battery |
3.6V Li-SOCL2 x 2EA (17000mAh) |
|
Eco Mode: 1 Year @ 30 Min |
|
Std Mode: 6 month @ 30 Min |
| USB Port |
Configuration Port |
| Button |
Menu Button |
|
Reset Button (below) |
| Installation Types |
Magnet & Screw for Wall Mount (optional) |
|

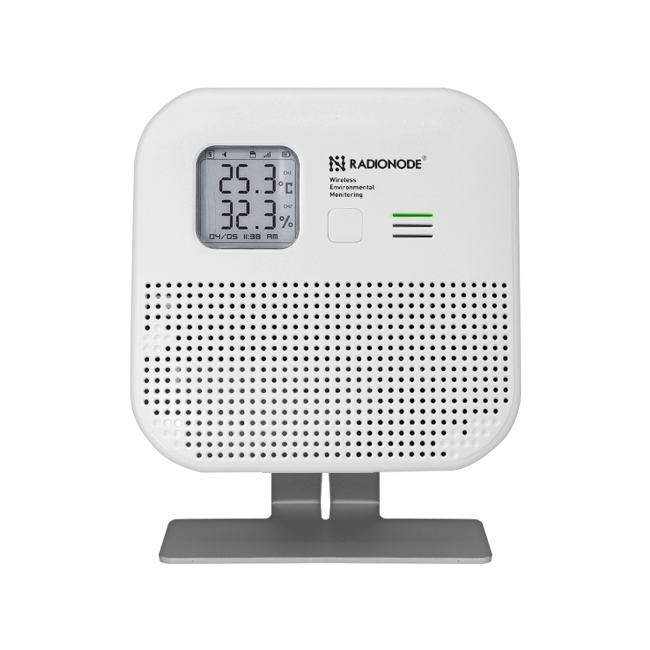

Desktop Bracket for Table Mount (optional accessory) |
| Weight |
352 g (with Battery) |
*Do not install this product close to the floor for accurate measurements
Software
Radionode365 is a sensor data monitoring web service for smart sensor management. Remotely integrated management with Radionode365 that satisfies both users and administrators.
Features:
- Real-time integrated dashboard with numerous measurement points at a glance
- Send text, phone, and email notifications
- Simple and user-friendly device registration
- Ability to set various alarm exceptions including power and network outage alarms
- Open API and IQ/OQ validation support
- User history management: separation of admin/user privileges, designation of a person in charge by management point
