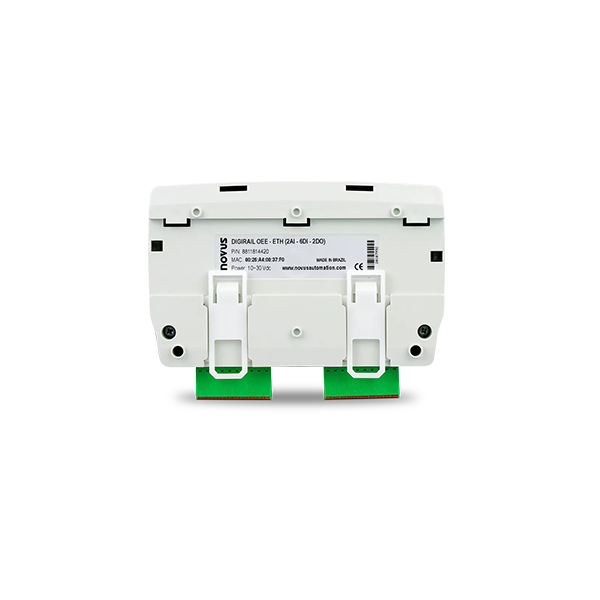

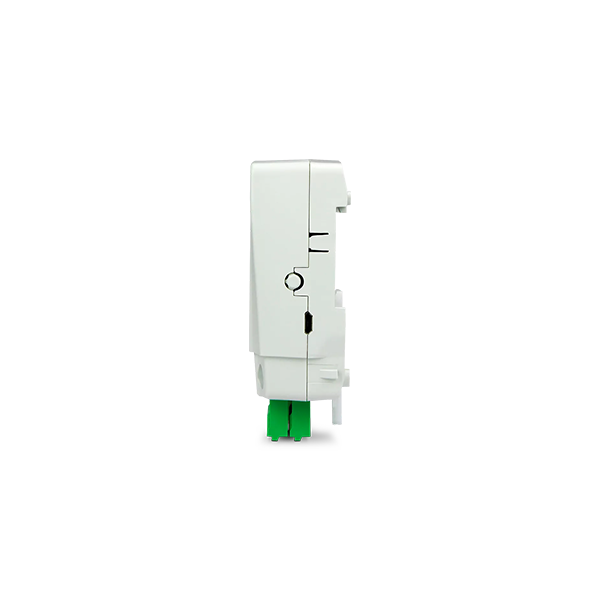

Novus DigiRail OEE Ethernet I/O Module for IoT Applications
DigiRail OEE Ethernet is an I/O module for IoT applications designed for Overall Equipment Effectiveness (OEE) and Manufacturing Execution System (MES) industrial systems.
Reliable and stable connectivity for data transmission – The OEE I/O module has the main industrial approvals, in order to assure monitoring reliability in harsh environments. Its internal memory buffer capability grants data retention and integrity in an eventual downlink, keeping the data logging seamlessly.
Native compatibility with main cloud providers – Provided with secure MQTT protocol, DigiRail OEE transmits data natively to Google Cloud, Microsoft Azure, Amazon AWS, NOVUS Cloud, or any other compatible IoT cloud platform.
Allows remote settings and diagnosis – System diagnosis and maintenance become very easy thanks to the remote configuration and viewing functions. DigiRail OEE allows to send MQTT and Modbus TCP commands to read status and to set device parameters.
Intuitive software designed for easy commissioning – NXperience software provides a user-friendly configuration interface, allowing input simulation and output forcing, locally through USB port and remotely through Modbus TCP.
Not what you were looking for? View our other Novus products here. Or view our other selection of I/O modules here.
Specifications
Inputs
6 digital, 2 analogs
Outputs
2 digital
Analog Signals
0-5 V, 0-10 V, 0-20 mA and 4-20 mA
Digital Signals
NPN, PNP, and dry contact
Analog Input Impedence
mA: 15 Ω + 1.5 V
V: 1 MΩ
Analog Resolution
Analog Inputs: 15 bits (65.000 levels)
Digital Input Features
Logical level ” 0 ” < 0,5 V
Logical level ” 1 ” > 3 V
Maximum voltage : 30 V
Input Impedance: 270 kΩ
Input current: @ 30 Vdc (típico) 0,15 mA
Maximum frequency (square wave):
Dry contact: 10 Hz
PNP: 3 kHz
NPN: 3 kHz
Minimum Pulse Duration
Dry contact: 50 ms
PNP: 150 us
NPN: 150 us
Digital Output Characteristics
2 NPN digital outputs
Maximum current that can switch the outputs 700 mA
Communication Interface
USB
Ethernet: 10/100 Mb/s
RS485
Software
NXperience
Power Supply
Voltage: 10 Vdc to 36 Vdc
Ethernet Model
Typical Consumption: 50 mA @ 24V
Maximum Consumption: 120 mA @ 12V
Operation Conditions
Temperature: -20 a 60° C (-4 to 140°F)
Humidity: 5 to 95% RH, non-condensing
Battery
CR2032 for internal clock retention
Assembly
DIN rail or screw mounting
Degree of Protection
IP20
Enclosure
ABS + PC
Buffer Capacity
1800 logs with all inputs enabled
7000 logs with 1 input enabled
Software
NXperience
Configuration, Data Collection and Analysis Software
NXperience is a configuration, data collection and analysis software for NOVUS wireless transmitters and data loggers. This program allows you to explore all the features and details of the devices, and communicates through USB interface, TCP-IP and NOVUS Cloud.
The NXperience is a comprehensive tool that enables graphical analysis of multiple data, alarm processing, positioning map visualization, performing mathematical calculations and reporting, and exporting data to multiple formats. It also provides device-specific diagnostics and commissioning, making testing and troubleshooting easier. Also, through NXperience you can create, manage an account and storage your data in NOVUS Cloud.
NXperience Trust
Configuration, Data Collection and Analysis Software
NXperience Trust is a validation software designed to meet good automated manufacturing practices in Pharmaceutical and Food & Beverage processes by keeping track of configuration and data collection from data acquisition systems. These applications require a reliable, user friendly and intuitive software to guarantee data analysis and visualization, user authentication, and security features.
The NXperience Trust centralizes and manages the process data and handles information from all devices in the network offering the possibility to work with more than one workstation.
The NXperience Trust complies with GAMP (Good Automated Manufacturing Practices) and meets FDA 21 CFR Part 11 technical requirements for computer systems validation. Electronic records are encrypted, user access requires a strong password authentication, application event log for traceability and audit trail.
NOVUS Cloud
Cloud IoT Platform
NOVUS Cloud is an IoT platform solution for monitoring devices for process data online visualization. Ready-to-use with NOVUS smart IoT devices, it is the perfect choice for customers with low IT infrastructure or with requirements of unified data from multiple devices at multiple locations.
NOVUS Cloud can receive information of any kind from the IoT devices, store them in the cloud database and present the data in nice and elegant dashboards.
Operation or management staff can get online awareness about the process deviations through E-mail or SMS notifications, besides the online dashboard alarms. Hosted on cloud server, NOVUS Cloud is accessible worldwide on the internet from any computer or mobile device.
