HiTemp140-CF

Probe Measurement Range: -200°C to +260°C
Submersible
Compatible with the ThermaLock and CF202 Canning Fittings
Logger can withstand temperatures up to 140 °C
This product is made to order and is not returnable or cancellable
An IFC400 USB Docking Station is required and sold separately

Download Specification Sheet

$569.00

Additional Equipment Required

IFC400 USB Docking Station - $ | Add to cart

SKU: N/A Categories: Battery Powered Data Loggers, Food Temperature Monitoring, MadgeTech, RTD Data Loggers, Temperature, Temperature Data Loggers

Description

HiTemp140-CF High Temperature Data Logger

The HiTemp140-CF combines the robust features of the standard HiTemp140 with added versatility for direct integration into canning processes. This high-precision temperature data logger, designed for harsh environments, is constructed from durable stainless steel and is submersible, making it ideal for use win heat penetration and temperature distribution testing in food processing. It can withstand temperatures up to +140 °C (+284 °F) and maintains an accuracy of ±0.1 °C (±0.18 °F).

This variant features a threaded end for seamless compatibility with both the CF202 Canning Fitting and the ThermaLock Canning Fitting, enhancing its utility in food processing applications. The HiTemp140-CF can store up to 32,256 readings and includes a rigid external probe that can measure temperatures up to +260 °C (+500 °F), with custom probe lengths available up to 7 inches. Equipped with non-volatile solid state memory, it ensures data retention even if the battery is discharged, recording date and time stamped readings. The HiTemp140-CF is perfectly suited for continuous use in both wet and dry environments up to +140 °C (+284 °F).

The HiTemp140-CF makes data retrieval quick and easy. Simply insert the device into the IFC400 or the IFC406 USB docking station (sold separately) and MadgeTech’s user-friendly software does the rest.

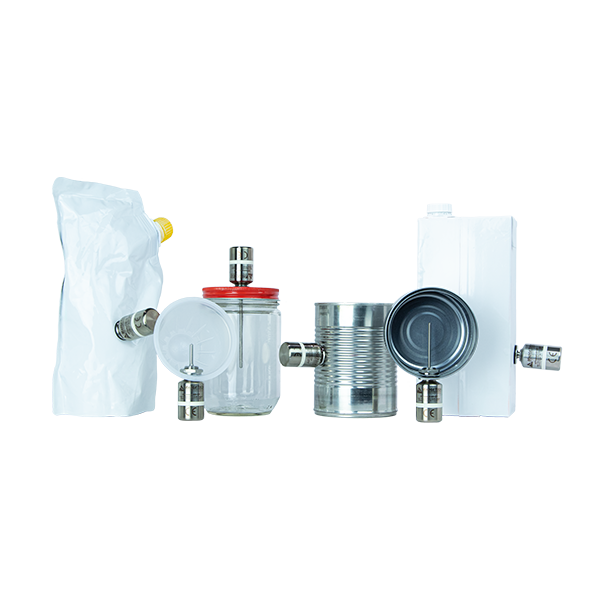

For Use With

Retort Pouches
Glassware
Plastic Cups
Recart Packaging
Cans

Specifications

TEMPERATURE
Temperature Sensor	100 Ω Platinum RTD
Probe Measurement Range	-200 °C to +260 °C (-328 °F to +500 °F)
	BODY OF LOGGER CANNOT EXCEED 140 °C
Temperature Resolution	0.01 ºC (0.02 ºF)
Calibrated Accuracy	±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
	±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
	±0.4 °C/±0.72 °F (-40 °C to –20.01 °C/-40 °F to -4.02 °F)
GENERAL
Start Modes	Software programmable immediate start
	Delay start up to 18 months in advance
Stop Modes	Manual or Timed (specific date and time
Real Time Recording	May be used with PC to monitor and record data in real time
Password Protection	An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
Memory	32,256 readings
Trigger Settings	High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers.
Reading in Trigger Settings Mode	6,451 readings
Wrap Around	Yes
Reading Rate	1 reading every second up to 1 reading every 24 hours
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device
Battery Type	3.6V high-temperature lithium battery included; user replaceable
Battery Life	2 years typical (1 minute reading rate)
Data Format	Date and time stamped °C, K, °F or °R
Time Accuracy	±1 minute/month at 20 °C to 30 °C (68 °F to 86 °F) (Stand alone mode)
Computer Interface	IFC400 OR IFC406 USB docking station required; 125,000 baud
Operating System Compatibility	Windows XP SP3 or later
Software Compatibility	Standard Software version 2.03.06 or later
	Secure Software version 4.1.3.0 or later
Operating Environment	-40 °C to +140 °C (-40 °F to +284 °F)
	0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
Dimensions (Body)	1.55 in x 0.97 in (39.3 mm x 24.6 mm)
Weight	4.2 oz (120 g)
Material	316 Stainless Steel, Radel
IP Rating	IP68
Approvals	CE

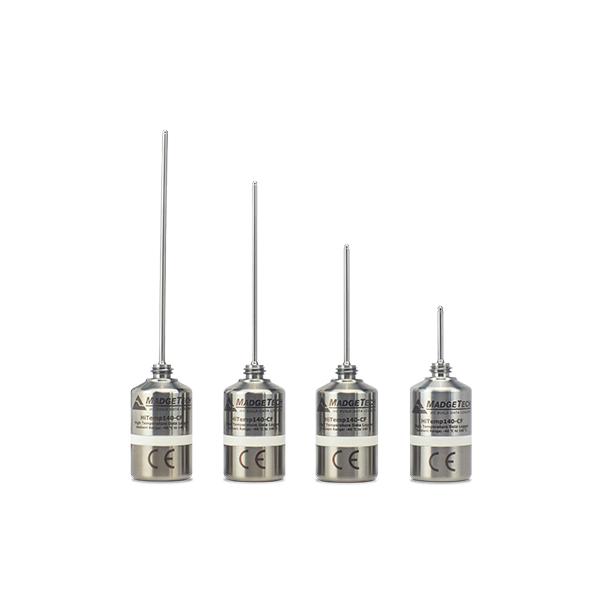

Dimensions (Probe)	HiTemp140-CF-1.1: 1.1 in x 0.095 in (27.94 mm x 2.4mm)
	HiTemp140-CF-1.2: 1.2 in x 0.095 in (30.48 mm x 2.4mm)
	HiTemp140-CF-1.3: 1.3 in x 0.095 in (33.02 mm x 2.4mm)
	HiTemp140-CF-1.4: 1.4 in x 0.095 in (35.56 mm x 2.4mm)
	HiTemp140-CF-1.5: 1.5 in x 0.095 in (38.1 mm x 2.4mm)
	HiTemp140-CF-1.6: 1.6 in x 0.095 in (40.64 mm x 2.4mm)
	HiTemp140-CF-1.8: 1.8 in x 0.095 in (45.72 mm x 2.4mm)
	HiTemp140-CF-2.1: 2.1 in x 0.095 in (53.34 mm x 2.4mm)
	HiTemp140-CF-2.2: 2.2 in x 0.095 in (55.88 mm x 2.4mm)
	HiTemp140-CF-3.1: 3.1 in x 0.095 in (78.74 mm x 2.4mm)
	HiTemp140-CF-3.9: 3.9 in x 0.095 in (99.06 mm x 2.4mm)
	HiTemp140-CF-5.4: 5.4 in x 0.095 in (137.16 mm x 2.4mm)

Software

MadgeTech 4 Software

The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
