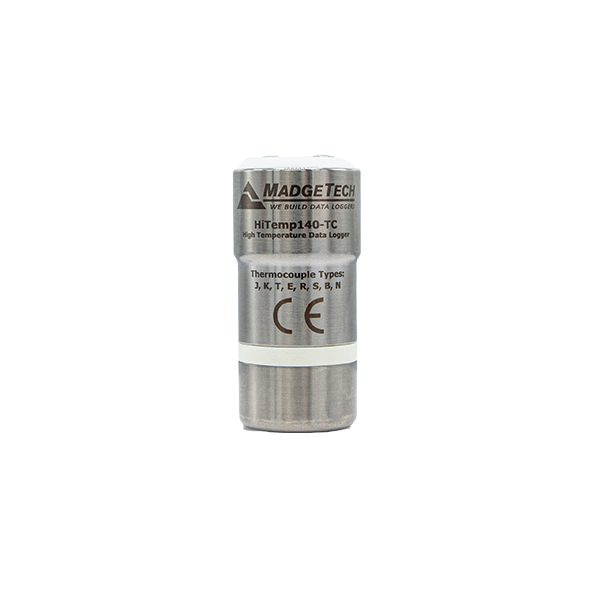

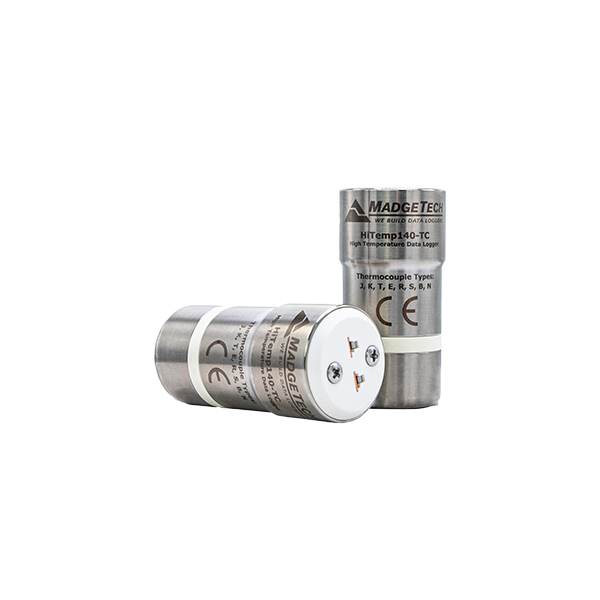

HiTemp140-TC High Temperature Data Logger with Thermocouple Connector
The HiTemp140-TC is a versatile high temperature data logger featuring an SMP thermocouple connector. Compatible with a wide variety of thermocouple probes, this data logger is capable of measuring temperature as high as +1820 °C and as low as -270 °C (probe dependent).
All of MadgeTech’s HiTemp140 data loggers are made of food grade stainless steel and can be placed in environments with temperatures as high as 140°C. The operating range of the data logger body can be extended to higher temperatures when used with MadgeTech’s thermal barrier options and suitable probe.
Using the MadgeTech 4 Software, starting, stopping and downloading the HiTemp140-TC is simple and easy. To use, simply place the HiTemp140-TC in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K, °R, or mV. The data can also be automatically exported to Excel® for further calculations.
Features
Measurement Range of -270°C to +1820°C
±0.5 °C Accuracy (probe dependent)
SMP Thermocouple
User Replaceable Battery
Trigger Options
Programmable Start and Stop Time
HiTemp140-TC Benefits
Interchangeable Thermocouple Probe Connector for Multipurpose Use
Simple Setup and Installation
Minimal Long-Term Maintenance
Applications
Depyrogenation
Food Preparation and Processing
Environmental Studies
Well Monitoring
Pasteurization
Many More Applications (Probe Dependent)
Specifications
CHANNEL 1 (Internal)
Temperature Range
-40 °C to +140 °C (-40 °F to +284 °F)
Temperature Resolution
0.01 ºC (0.02 ºF)
Calibrated Accuracy
±0.5 °C (±0.9 °F
0 °C to 50 °C (32 °F to 122 °F)
CHANNEL 2 (Thermocouple)
Thermocouple Types
J, K, T, E, R, S, B, N
Measurement Range
(-270 °C to +1820 °C / -454°F to +3308 °F)
(Probe Dependent)
Connector Type
Female subminiature (SMP)
Cold Junction Compensation
Automatic, based on internal channel
Maximum Thermocouple Resistance
100 Ω
Thermocouple
Range (°C)
Resolution
Accuracy*
J
-210 to +760
0.1 °C
±0.5 °C
K
-270 to +1370
0.1 °C
±0.5 °C
T
-270 to +400
0.1 °C
±0.5 °C
E
-270 to +980
0.1 °C
±0.5 °C
R
-50 to +1760
0.5 °C
±2.0 °C
S
-50 to +1760
0.5 °C
±2.0 °C
B
+50 to +1820
0.5 °C
±2.0 °C
N
-270 to +1300
0.1 °C
±0.5 °C
GENERAL
Start Modes
Software programmable immediate start
Delay start up to 18 months in advance
Stop Modes
Manual or Timed (specific date and time)
Real Time Recording
May be used with PC to monitor and record data in real time
Password Protection
An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Memory
16,256 readings
5,418 readings in trigger settings mode
Wrap Around
Yes
Reading Rate
1 reading every second up to 1 reading every 24 hours
Calibration
Digital calibration through software
Calibration Date
Automatically recorded within device
Battery Type
3.6V high-temperature lithium battery included; user replaceable
Battery Life
2 years typical (1 minute reading rate at 25 °C/77 °F)
Data Format
Date and time stamped °C, K, °F, °R, or mV
Time Accuracy
±1 minute/month at 25 °C (77 °F)
Computer Interface
IFC400 OR IFC406 USB docking station and adapter required; 125,000 baud
Operating System Compatibility
Windows XP SP3 or later
Software Compatibility
MadgeTech Standard Software version 4.2.25.15 or later.
MadgeTech Secure Software version 4.2.24.16 or later.
*Thermocouple accuracy specified with 24 AWG diameter thermocouple wires
BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE, OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 150 °C (302 °F).
Software
MadgeTech 4 Software
The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
