Influx K-Volt

  • Software configurable output operating modes: Voltage, Current, Frequency, PWM and digital
  • Configuration, programming and output control via CAN or USB interface
  • PWM signal can be configured to simulate engine crank and CAM patterns
  • Supplied with configuration software Influx K-Cal for Windows®
  • Device drivers for user defined Windows® USB applications. (32/64-bit)
  • Suitable for use in the automotive field
  • An 8% Tariff Surcharge will be added to this item at checkout

$3,515.00

Normal delivery 1-2 weeks

Get a QuoteGet More Info
SKU: INF2209 Categories: ,

Description

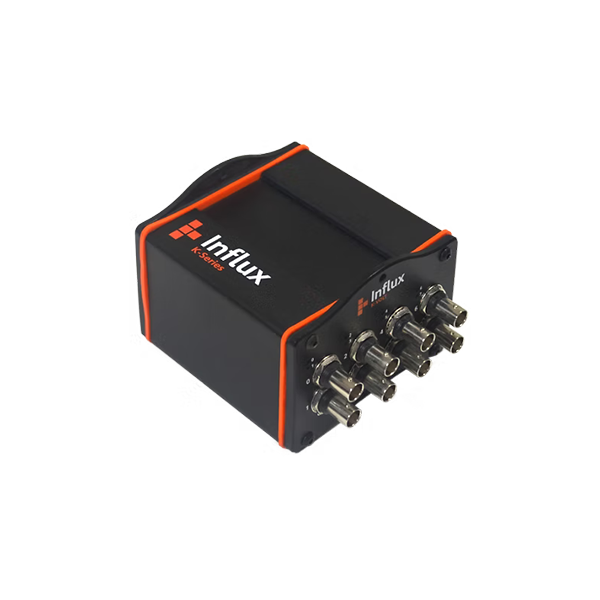

Influx K-Volt Stackable & Configurable Signal Generator

The Influx K-Volt can be used to generate fast configurable analog and digital signals from CAN Bus messages. Designed for high speed and accurate simulation of sensors (For example: HIL and Replay systems). The K-Volt can be connected directly to a PC via a USB connection.

The output calibration and set-up of the K-Volt is easily configurable via the Influx K-Cal software, a freely distributable Windows PC application. The K-Volt can be integrated into your Windows applications via the SDK K_VoltLIB, providing everything you need to develop your own applications.

The K-Volt is part of Influx Technology’s stackable instrumentation K-Series which is compatible with Influx Rebel data loggers

Key Features

  • Software configurable output operating modes: Voltage, Current, Frequency, PWM and digital
  • Configuration, programming and output control via CAN or USB interface
  • PWM signal can be configured to simulate engine crank and CAM patterns
  • Supplied with configuration software Influx K-Cal for Windows®
  • Device drivers for user defined Windows® USB applications. (32/64-bit)
  • Suitable for use in the automotive field
  • Power by USB only to enable configuration and programming
  • Eight LEDs indicate the functions of the corresponding outputs
  • LEDs indicate the connectivity of the device and the operating mode
  • Ability to exclude the power on unused outputs thus reducing power consumption
  • Galvanic isolation. (Outputs, USB, supply and CAN Bus)
  • WakeOnCAN enables K-Volt to power up and power down in deep sleep mode
  • Stackable ABS enclosure

Specifications

Technical Data Description
Power Supply 4.5V to 36V DC
Maximum power consumption 6W {during normal operation of the device)
Reverse polarity protection
Power consumption Normal operation approx. 500mA at 12V
Power down standby mode approx. 3mA at 12V
LED Indicators x8 LED indicating the functionality of the corresponding output
Configuration via CAN bus and USB with KvoltCal
output control settings and configurations stored in the device
Interfaces CAN bus (max 1000 kbps)
Wake Up WakeOnCAN
PC Interfaces USB2.0 Type B {Isolated)
Enclosure L 115mm x H 46mm x W 105mm
Weight 450g
IP65
ABS
Environmental -40degC to +85degC
Humidity max 90%
Connection Type BNC
Refresh Rate 1 kHz
Isolated Outputs x8 galvanically isolated outputs, software configurable
Max output current: Voltage source up to 10mA; Current source up to 24mA
Maximum Reverse Leakage IR: 1µA@ ±12V
Breakdown Voltage VBR: ±13.3V@ 1mA
Maximum Clamping Voltage VC: ±19V@ 1A
Bidirectional Peak Pulse Power (tp = 8/20 µs) 400W
Software Configurable Outputs
Number of Channels x8 galvanically isolated outputs, software configurable
Voltage Output Output Range: OV to SV; OV to 10V; ±SV; ±10V
DC output Impedance <150hms
Load resistance: > 1k0hms
Resolution 16bits
Current Output Voltage source up to 10 mA; current source up to 2mA
Load resistance:< 300 Ohms, Inductive load:< SOmH
Resolution 16bits
Digital Output Voltage at a high level: software configured identically to Voltage output
Output current at a hjgh level:< 10mA
Voltage at a low level: < 0.8V
Output current at a low level: < 20mA
Duration of fronts: < 100 microseconds
Output States: Open Drain-Frequency, PWM/Duty Cycle and Custom

Software

K-CAL

K-CAL is a freely distributable Windows PC application that accompanies all the K-Series products from Influx. K-Cal software is specifically designed to ensure you harness the full potential of all the K-series devices with precision and convenience.

Effortlessly configure your connected K-Series device using our user-friendly application K-CAL, or explore data analysis with the dynamic live view function.

Influx K-Cal offers powerful features that enable you to set byte orders, adjust unit measurements, set baud rates, and optimize power consumption through configurable sleep modes.

K-CAL lets you do everything from the unified export of DBC files for post-processing to real-time data visualization on the oscilloscope to saving and exporting that data from the oscilloscope.

Downloads

Software

K-CAL for Windows – Version 3.38 (MSI file)
