K-TC

Influx K-TC

  • Each K-TC unit has up to 8, 16, or 32 thermocouple connections at a 20Hz sampling rate
  • Supports K, J, and T-type thermocouples
  • Simple signal configuration using a DBC file
  • Supports logging of timestamped temperature data inside an integrated eMMC (8GB)
  • Supplied with K-CAL configuration software for Windows®
  • Stackable ABS enclosure

$1,325.00 – $2,550.00

Get a QuoteGet More Info
SKU: K-TC Categories: , , , ,

Description

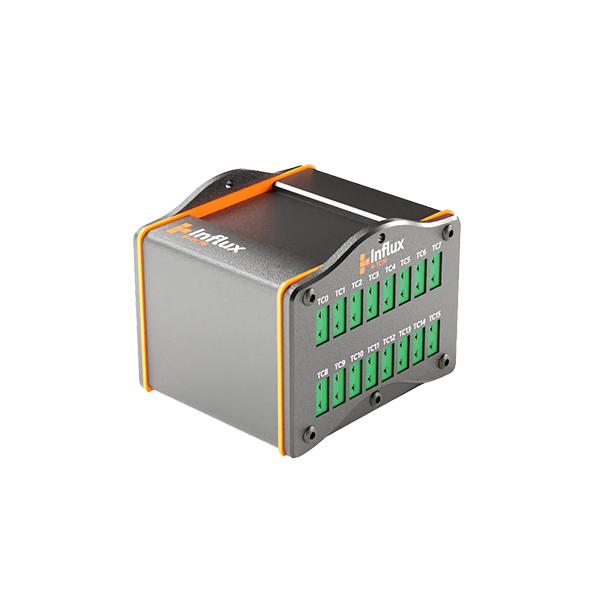

The Influx K-TC unit is available with 8, 16, or 32 channels; these can be stacked, and daisy chained to meet your requirements. Capture data from an unlimited number of thermocouples with the K-TC. The K-TC has galvanic isolation across USB, CAN, Power, and TC boards to ensure the protection of your devices. Supporting thermocouples type (K, J, & T)

Mode 1 – Standalone Temperature Data Logging

Say goodbye to the need for a PC! Store your thermocouple data directly within the device using the internal 8GB eMMC storage, recording many months of data. This standalone data logging mode ensures user-friendliness and efficiency, enabling extended logging periods without requiring human interaction.

​This capability can be used simultaneously with Mode 2.

Mode 2 – Temperature Data to CAN

Connect and transfer your thermocouple data onto the CAN bus using Influx Technology’s Rebel or ReXgen series, or another CAN bus logger. Use a Rebel series, ReXgen series, or an existing CAN bus data logger, to integrate the K-TC devices. Extend your capabilities by connecting the CAN bus output to a ReXgen Air and remotely collect your thermocouple data on an AWS S3 server.

Mode 3 – USB to PC

Witness your thermocouple data come to life on your PC screen. Use the integrated oscilloscope feature of K-CAL to visualize and interpret your measurements in real-time. This mode provides a dynamic and user-friendly way to capture, view, and export your data to third-party formats for in-depth analysis.

Stackable Enclosure

The K-TC is a flexible device that can be used with any other CAN logger. The K-TC enclosure is designed to be stacked with other Influx devices.

  • Stackable with Rebel LT, other K-TCs, and K-Series devices
  • Create a modular custom rig for your project
  • Crafted to meet the demanding standards of engineers
  • Enables multiple thermocouples

Software

K-CAL

This powerful software allows for the configuration of up to five K-TCs at once and supports CAN message transmission with an oscilloscope for live data viewing. It also includes a DBC file for easy integration.

K-Log

Enables the Temperature data to be logged directly to the K-TC’s internal 8GByte eMMC.

Specifications

 Technical Data                                                                                            Description
Power supply
4.5 to 31V DC (isolated)
Power consumption
K-TC8 / K-TC16 / K-TC32
Normal operation
120mA at 12V / 140mA at 12V / 200mA at 12V
Power down standby mode
24mA at 12V / 25mA at 12V / 30mA at 12V
Configuration
Via CAN bus with K-Cal for calibration. Via USB with TC Logger SW for logging configurations stored in the device
Interfaces (Isolated)
CAN bus (max 1000 kbps) and USB 2.0
Storage
8 GB eMMc
PC Interfaces
USB2.0 Type B (isolated)
Enclosure
Dimension (LxHxW): 115×56(K-TC8) / 79(K-TC16) / 149(K-TC32) x 105mm
Weight 450g(K-TC8), 570g(K-TC16), 900g(K-TC32)
IP 40
ABS/Aluminium Allow* (depending upon the stock availability)
Environmental
-40°C to +85°C
Humidity max 90%
Thermocouple Inputs
K, J, T-type
Accuracy ± 1°C
Measurement: -200 °C to 1250 °C
Connection type
Thermocouples: mini K, J ,T-Type (galvanically isolated)
Thermocouple Inputs
Number of channels
K-TC8: 8 channels, K-TC16: 16 channels, K-TC32: 32 channels (group of 8 thermocouples – each galvanically isolated)
Channel Input Types
K, J, T
Measurement Range
(-)200°C to (+)1200°C
Max Sampling Rate
20 Hz per channel
Max applied voltage
± 3.3 V
Peak Galvanic Isolation Voltage (from all other modules and power supplies)
Three-wire CAN Bus
780 V
Four-wire USB Bus
840 V
Two-wire power module
560V

Software

K-CAL

A freely distributable Windows PC application accompanies the K-TC. The Influx K-CAL software is specifically designed to ensure you harness the full potential of the K-TC with precision and convenience. With K-CAL, you can:

  • Customise CAN bus settings
  • Configure up to five TC devices at once
  • Adjust sampling rates seamlessly
  • Decide the byte order – Motorola/ Intel
  • Change the unit of measurement according to your needs
  • Change CAN ID according to the requirement
  • Configure sleep mode for power-saving
  • Export DBC of instrumentation devices for post-processing
  • View live data in oscilloscope and export data in ‘.csv’, ‘.mat’, and ‘.dat’ format
  • Configure the thermocouples type (K, J, & T)
  • Streamline input calibration and setup

K-Log

Another free software by Influx Technology. This enables standalone data logging directly to the internal eMMC storage with no PC required.

  • Synchronize the time of the logger RTC with the PC time.
  • Configure and format the K-TC using the TC logger software.
  • Export data in CSV, MAT, and RXD format.
  • Store up to several months of data on inbuilt 8Gb eMMc storage.

Calibration

Easy Calibration​​

Influx’s K-TC temperature measurement devices can be professionally calibrated (on demand) and certified using the Influx K-CAL software.

Calibration is vitally important. Calibration keeps the device’s functionality and accuracy in check and gives users and businesses confidence in the results that they monitor, record, and subsequently control.

Contact our support team to get your K-TC device calibrated and certified.
