Description
MSR145W2D Wireless Data Logger
The MSR145W2D wireless mini-logger from MSR stores over one million measured values. By integrating it into a WLAN/WiFi network, the data logger can be used in practically any kind of measurement application.

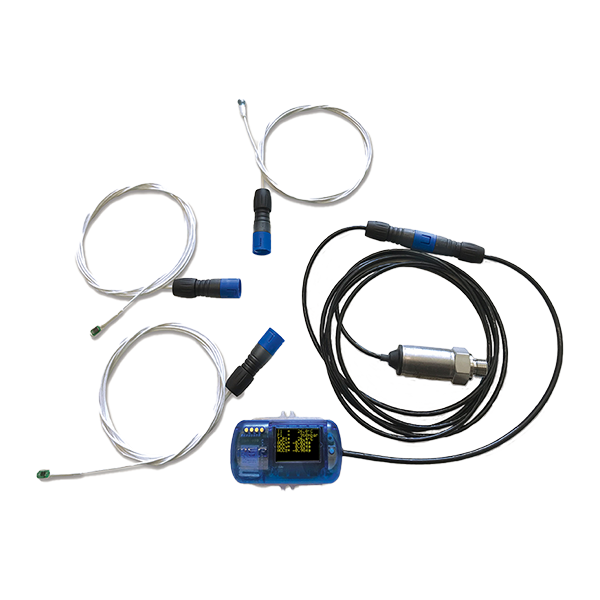

Interchangeable FlexSensors for Temperature, Humidity, Light
The WiFi data logger is an all-round talent when it comes to sensor technology: You can choose various internal sensors as well as up to five external sensors or connections. The FlexConnector offers the highest possible flexibility. The intelligent plug-in connection facilitates customer-specific adaptation of the desired FlexSensors.
WiFi Wireless Data Logger: Ready to use in no time
No wiring costs and no time-consuming manual reading of measured values. Measured data can even be sent from places with difficult access. Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network.
Long-term measurements with the MSR145W2D
When it comes to observing environmental conditions over a longer period of time, in many cases, it is quite sufficient to transmit the collected data via WiFi once or twice a day. When configuring the MSR145W2D, you can set the time windows during which the data logger should connect to the WiFi network. The WiFi connection is thus only activated when it is needed, which has a positive effect on the battery life of the data logger.
Specifications
Memory capacity: Over 1 million measurement values
Key Button: With the button, you can activate and deactivate the display, the WiFi module, and the data recording.
LED:
- Blue: Record Indicator
- Red: Alarm Indicator
- Yellow: Battery Charge Indicator
Power supply: Lithium-polymer battery, rechargeable via the USB port.

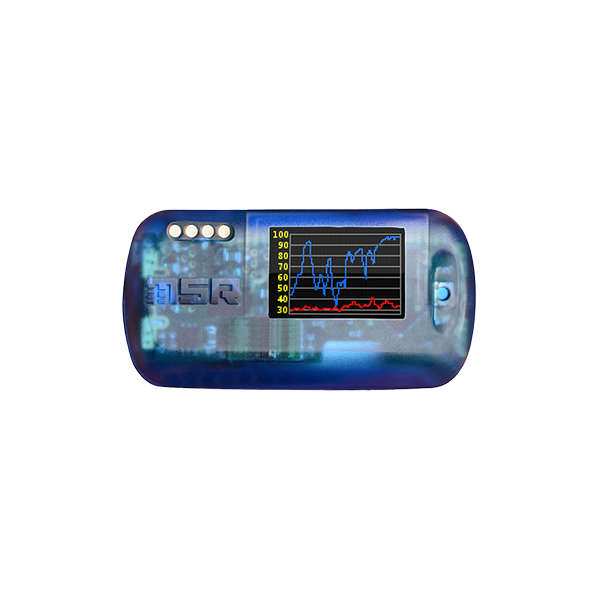

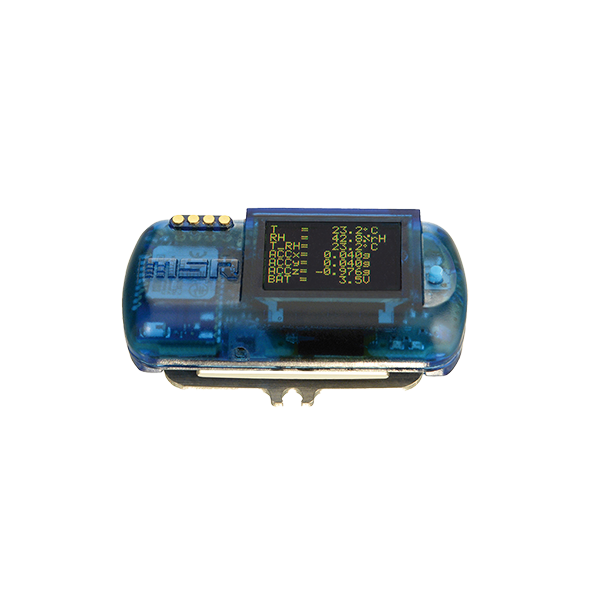

OLED Display: High-contrast, brilliant OLED color display to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, Wi-Fi (WLAN)
PC software: MSR Setup, Reader, Viewer and Online software, MSR WLAN LocalViewer, System requirements: Windows 7 or higher, USB port
Operation conditions:
- Temperature: -20°C to +65°C
Storage conditions:
- Temperature: +5°C to +45°C (ideal storage conditions for the battery)
- Humidity: 10 to 95 % relative humidity, non-condensing
Standards: The MSR147W2D complies with EU-Directives RoHS/WEEE.
Software
MSR LocalCloud
With MSR LocalCloud, you can store the measurement data from MSR data loggers on your (company’s) own server. Responsibility and control over the data thus remain completely internal.
You do not want to store the measurement data of your MSR WiFi wireless data loggers in the MSR SmartCloud, but on your own server? The MSR LocalCloud is the optimal solution if you want to keep control and responsibility over the measurement data completely in-house.
Monitor and document
In the user-friendly MSR LocalCloud, you can view the measured values of your MSR wireless data loggers and start or stop the recording of measurements as required. On the LocalCloud entry page «Devices», you can find the details of each data logger clearly arranged, and in the «Live» view, you can see the incoming data in real time.
For better visualization, the data is displayed as measurement curves. Selected areas can be viewed in more detail using the zoom function. For further processing, the recorded data can be downloaded as Excel, CSV, or NDJson files – from a single data logger or from several at the same time.
MSR SmartCloud
Storing data online, monitoring measured values remotely, and, if required, sharing them with multiple users – the MSR SmartCloud offers you these options.
The MSR SmartCloud is our solution for remotely monitoring the measured data of MSR data loggers. This cloud solution managed by MSR Electronics GmbH stores the data measured by MSR data loggers in a database. Via web access to the MSR SmartCloud, you can view the measured data of your MSR data logger at any time and from anywhere during operation.
Monitor, document, alert
In the MSR SmartCloud, you can view the latest measured values of your MSR wireless data loggers in a summary. The measurements can be represented as graphs and, if required, exported as a PDF report. If certain limit values are exceeded, the SmartCloud alerts the user via e-mail.
The owner of an MSR data logger with access to the MSR SmartCloud has the opportunity to grant additional users read permission for the measured data of a defined data logger. This way, a company’s employees can view the data that falls within their remit, whilst the configuration of the data logger is reserved for the administrator of the data logger.
MSR PC Software (Standard)
Configuration and analysis software for MSR data loggers
The configuration and readout of the MSR data loggers, as well as the export of measurement data and the evaluation of the recorded data, are carried out with the help of the powerful MSR PC software. When you purchase an MSR data logger, the latest PC software is supplied free of charge.
MSR PC software package: Setup, Reader, Online, Viewer
The user-friendly MSR PC software consists of the four main programs, MSR Setup, Reader, Online, and Viewer, as well as several auxiliary programs that allow, among other things, export to MATLAB or CSV file format.
MSR WLAN (Wi-Fi) Software
MSR LocalViewer for graphical representation of the measurement data transmitted with MSR145W2D and MSR147W2D data loggers via Wi-Fi
To set up and configure your MSR145W2D or MSR147W2D data logger, please first install the MSR PC software (standard).
