Configuration
| Item Number |
Housing |
Type and battery |
Picture |
Size & weight |
Sheet Material |
Price* |
| 145WDB25 |
IP60 |
Design housing with 230 mAh battery, OLED display, and Bluetooth Low Energy |
 |
35 x 17 x 57 mm Approx 27 g |
PC, not encapsulated |
$270 |
| 145WDB23 |
Design housing with 900 mAh battery, OLED display, and Bluetooth Low Energy |
|
35 x 25 x 57 mm Approx 43 g |
PC, not encapsulated |
$295 |
| 145WDB26 |
IP67 |
Design housing with 230 mAh battery, OLED display, and Bluetooth Low Energy |
|
35 x 17 x 57 mm Approx 36 g |
PC, encapsulated |
$410 |
| 145WDB22 |
Design housing with 900 mAh battery, OLED display, and Bluetooth Low Energy |
|
35 x 25 x 57 mm Approx 62 g |
PC, encapsulated |
$435 |
*Price above is for the unit only. Contact us to configure sensor and accessory options for your application
Calibration is available. Contact us for pricing
Description

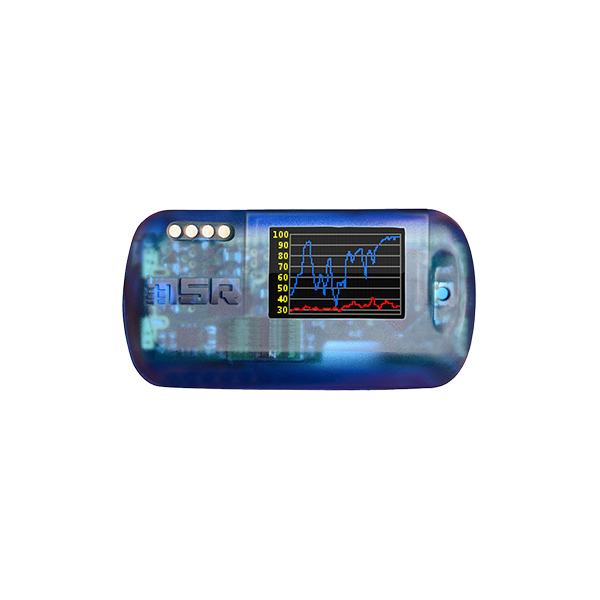

MSR145WD Wireless Data Logger
Precisely record and wirelessly monitor physiological parameters such as skin temperature and moisture – this is what the MSR145WD wireless data logger equipped with Bluetooth Low Energy (BLE) and a storage capacity of 1 million measured values enables you to do.

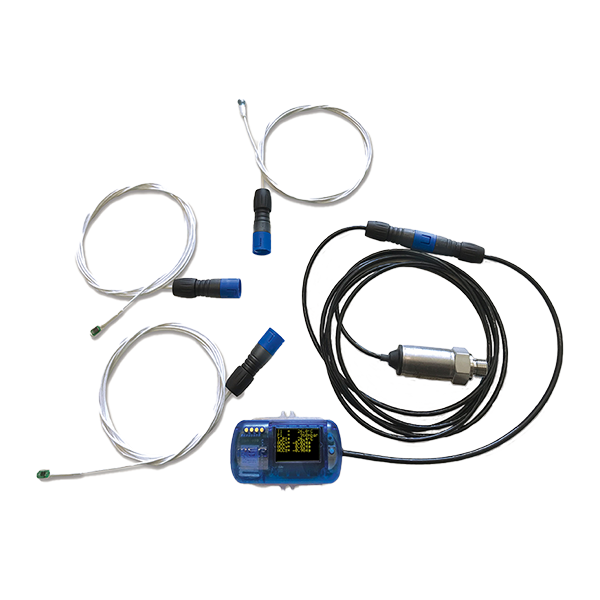

Pre-calibrated plug-in sensors for temperature and humidity
The sensors supplied by MSR Electronics GmbH can be inserted and removed individually. Due to the automatic configuration feature, the data logger instantly recognizes when a sensor is inserted. The calibration data is stored in the relevant sensor. In addition to the plug-in temperature and humidity sensors, you can have your MSR147WD equipped with an internal air pressure and/or acceleration sensor.
Power-saving Bluetooth Low Energy, useful MSR DataLogger app

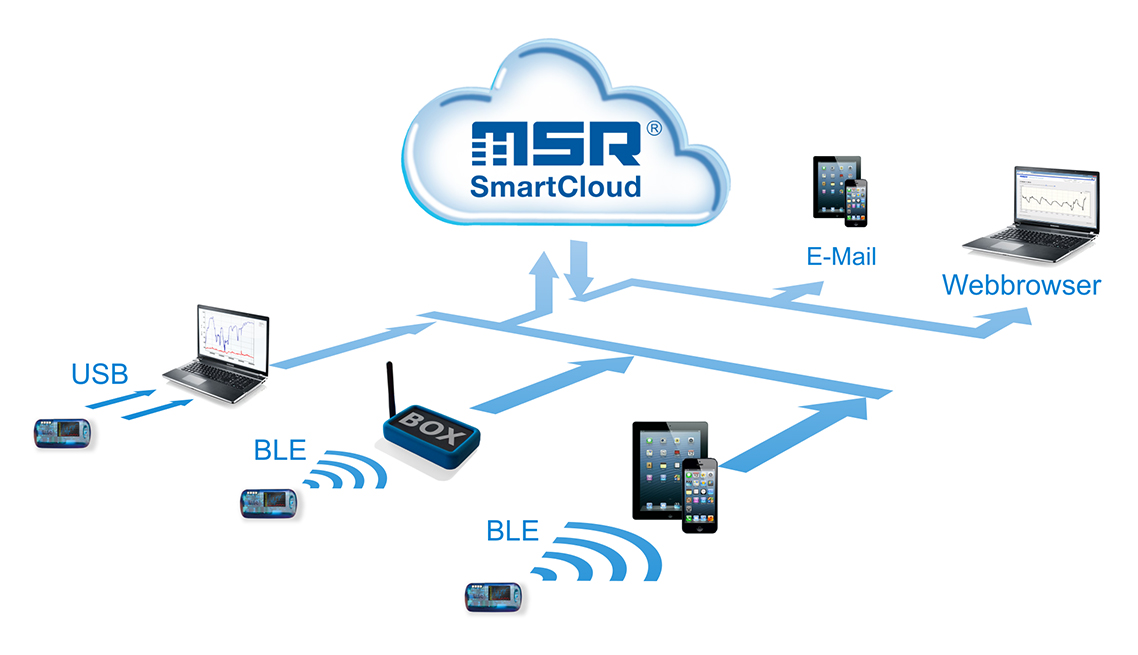

The use of Bluetooth Low Energy short-range radio technology is ideal when measurement data from hard-to-reach places needs to be monitored over a longer period. Measured values can be retrieved at any time using the MSR DataLogger app on a smartphone or tablet. Using the optionally available base station, you can quickly send data from several MSR147WD data loggers to the MSR SmartCloud via BLE/LAN. The MSR SmartCloud allows you to view and manage the stored measured values online and to use the alarm function.
Data Logger for measuring the physiological properties of textiles
Functional clothing is subjected to extensive testing in the laboratory and in the field before it goes on sale. The MSR145WD wireless data logger, with its plug-in humidity and temperature sensors, facilitates the time-consuming measurement and monitoring of physiological parameters such as skin temperature and humidity.
Specifications
Memory capacity: Over 1 million measurement values
Key Button: With the button, you can activate and deactivate the display, the BLE module, and the data recording.
LED:
- Blue: Record Indicator
- Red: Alarm Indicator
- Yellow: Battery Charge Indicator
Power supply: Lithium-polymer battery, rechargeable via the USB port.
OLED Display: High-contrast, brilliant OLED color display to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, Bluetooth Low Energy
PC software: MSR Setup, Reader, Viewer and Online software, System requirements: Windows 7 or higher, USB port
Operation conditions:
- Temperature: -20°C to +65°C
Storage conditions:
- Temperature: +5°C to +45°C (ideal storage conditions for the battery)
- Humidity: 10 to 95 % relative humidity, non-condensing
Standards: The MSR147WD complies with EU-Directives RoHS/WEEE.
Software

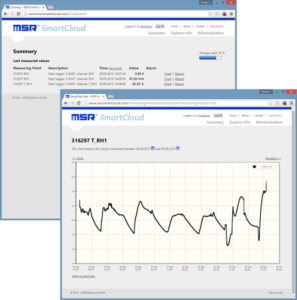

MSR SmartCloud
Storing data online, monitoring measured values remotely, and, if required, sharing them with multiple users – the MSR SmartCloud offers you these options.
The MSR SmartCloud is our solution for remotely monitoring the measured data of MSR data loggers. This cloud solution managed by MSR Electronics GmbH stores the data measured by MSR data loggers in a database. Via web access to the MSR SmartCloud, you can view the measured data of your MSR data logger at any time and from anywhere during operation.
Monitor, document, alert
In the MSR SmartCloud, you can view the latest measured values of your MSR wireless data loggers in a summary. The measurements can be represented as graphs and, if required, exported as a PDF report. If certain limit values are exceeded, the SmartCloud alerts the user via e-mail.
The owner of an MSR data logger with access to the MSR SmartCloud has the opportunity to grant additional users read permission for the measured data of a defined data logger. This way, a company’s employees can view the data that falls within their remit, whilst the configuration of the data logger is reserved for the administrator of the data logger.
MSR DataLogger App
With the MSR DataLogger app, you can start and stop the data recordings of your Bluetooth data logger on your smartphone or tablet. The app also allows you to view live measurement data. This is particularly practical if the data logger is installed at measuring points that are difficult to access, for example, on rotating parts of a production plant. This allows you to call up current and most recently stored measured values, such as shocks, temperature, or air pressure, directly on your mobile phone or tablet without having to stop the machine.
Another function of the app: Read out the measured data from the data logger and transfer it to the MSR SmartCloud.
App for MSR data loggers with Bluetooth function
The data loggers and the app communicate via low-power Bluetooth low-energy wireless technology (Bluetooth 4.0). The MSR DataLogger app is available for Android and Apple devices. There is no Windows version.
MSR PC Software (Standard)
Configuration and analysis software for MSR data loggers
The configuration and readout of the MSR data loggers, as well as the export of measurement data and the evaluation of the recorded data, are carried out with the help of the powerful MSR PC software. When you purchase an MSR data logger, the latest PC software is supplied free of charge.
MSR PC software package: Setup, Reader, Online, Viewer
The user-friendly MSR PC software consists of the four main programs, MSR Setup, Reader, Online, and Viewer, as well as several auxiliary programs that allow, among other things, export to MATLAB or CSV file format.
Downloads
Software
Note: For MSR145WD data loggers with 900 mAh battery, firmware version v2.50 – v.2.54, a firmware update with the latest version is necessary to ensure battery runtime. MSR DataLogger App
