Call for configuration and price. 1-800-956-4437
| Item Number | Type and battery | Housing | Picture | Size & weight | Sheet Material | Price* |
| 147W2DB25 | Design housing with 230 mAh battery, OLED display and Bluetooth Low Energy | Standard IP60 |  |
35 x 17 x 57 mm Approx 27 g | PC, not encapsulated | $732 |
| 147W2DB26 | Waterproof IP67 | |
35 x 17 x 57 mm Approx 36 g | PC, encapsulated | $953 |
*Price above is for the unit only. Contact us to configure sensor and accessory options for your application
Calibration is available. Contact us for pricing
The easy to use MSR147W2D wireless data logger is ideal for remote monitoring of temperature and humidity. This can be of great benefit when testing the material and construction properties of functional clothing, for example. The temperature and humidity sensors, which are available in different cable lengths, can be easily attached to the body of a test person and the physiological parameters determined, such as skin temperature and moisture level can be conveniently accessed online via Wi-Fi/WLAN.

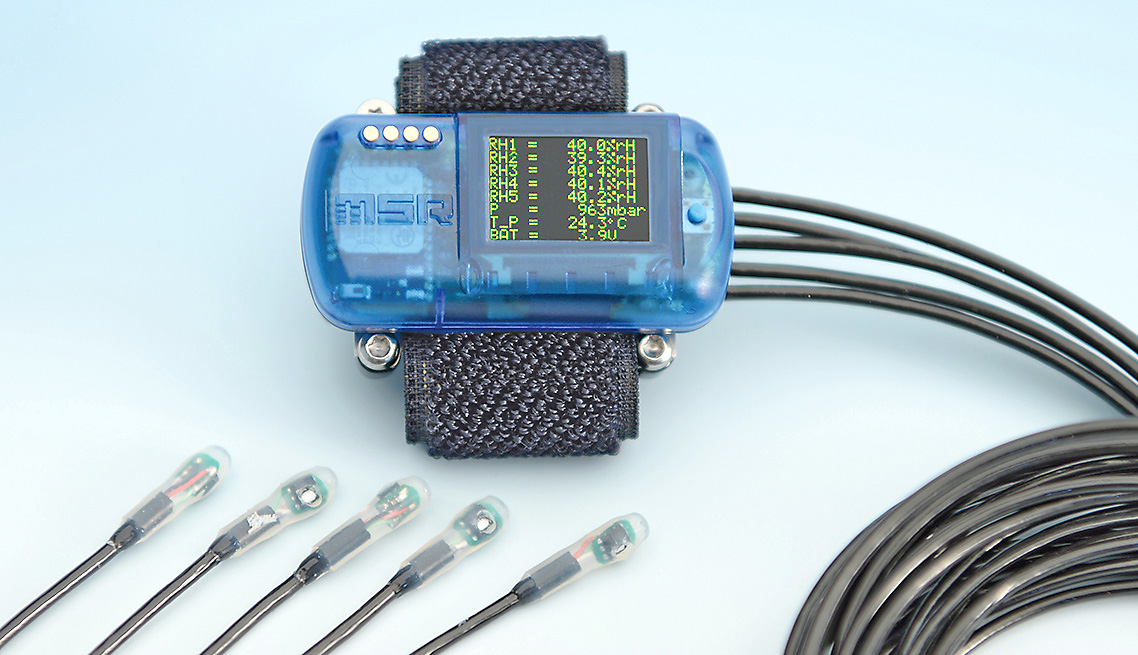

The sensors supplied by MSR Electronics GmbH can be inserted and removed individually. Due to the automatic configuration feature, the data logger instantly recognizes when a sensor is inserted. The calibration data is stored in the corresponding sensor. In addition to the plug-in temperature and humidity sensors, you can have your MSR147W2D equipped with an internal air pressure and/or acceleration sensor.
No wiring costs and no time-consuming manual reading of measured values. Measured data can even be sent from places with difficult access. Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network.
With the MSR147W2D, you have the option of using the MSR LocalCloud to store, manage and export the data either locally on your (company’s) own server or in the web-based cloud solution MSR SmartCloud.
Memory capacity: Over 1,000,000 measured values
Key button: With the button you can activate and deactivate the display, the Wi-Fi module and the data recording.
LED:
Power supply:
Options: Charging station (USB hub) for 7 MSR147W2D (item number B47002)
Interface: USB, Wi-Fi
PC software: MSR Setup, Reader, Viewer and Online software MSR WLAN Local Viewer System requirements: Windows 7 or higher, USB port
Operation conditions: Temperature: -20°C to +65°C
Optimum Storage conditions:
Standards: The MSR147W2D complies with EU-Directives RoHS/ WEEE.
With MSR LocalCloud you can store the measurement data from MSR data loggers on your (company’s) own server. Responsibility and control over the data thus remain completely internal.
You do not want to store the measurement data of your MSR WiFi wireless data loggers in the MSR SmartCloud, but on your own server? The MSR LocalCloud is the optimal solution if you want to keep control and responsibility over the measurement data completely in-house.

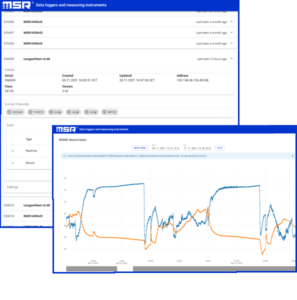

In the user-friendly MSR LocalCloud you can view the measured values of your MSR wireless data loggers and start or stop the recording of measurements as required. On the LocalCloud entry page «Devices» you can find the details of each data logger clearly arranged and in the «Live» view you can see the incoming data in real time.
For better visualization, the data is displayed as measurement curves. Selected areas can be viewed in more detail using the zoom function. For further processing, the recorded data can be downloaded as Excel, CSV or NDJson files – from a single data logger or from several at the same time.
Storing data online, monitoring measured values remotely and, if required, sharing them with multiple users – the MSR SmartCloud offers you these options.
The MSR SmartCloud is our solution for remotely monitoring the measured data of MSR data loggers. This cloud solution managed by MSR Electronics GmbH stores the data measured by MSR data loggers in a database. Via web access to the MSR SmartCloud, you can view the measured data of your MSR data logger at any time and from anywhere during operation.
In the MSR SmartCloud you can view the latest measured values of your MSR wireless data loggers in a summary. The measurements can be represented as graphs and, if required, exported as a PDF report. If certain limit values are exceeded, the SmartCloud alerts the user via e-mail.
The owner of an MSR data logger with access to the MSR SmartCloud has the opportunity to grant additional users read permission for the measured data of a defined data logger. This way, a company’s employees can view the data that falls within their remit, whilst the configuration of the data logger is reserved for the administrator of the data logger.
Configuration and analysis software for MSR data loggers
The configuration and readout of the MSR data loggers as well as the export of measurement data and the evaluation of the recorded data is carried out with the help of the powerful MSR PC software. When you purchase an MSR data logger, the latest PC software is supplied free of charge.
The user-friendly MSR PC software consists of the four main programs MSR Setup, Reader, Online and Viewer as well as several auxiliary programs that allow, among other things, export to MATLAB or CSV file format.
MSR LocalViewer for graphical representation of the measurement data transmitted with MSR145W2D and MSR147W2D data loggers via Wi-Fi
To set up and configure your MSR145W2D or MSR147W2D data logger please first install the MSR PC software (standard).
