NanoTemp125

Operates from -20 °C to +125°C
Submersible (IP68)
User Replaceable Battery
±0.1 °C (± 0.18 °F) Accuracy
Probe Lengths up to 5.25 inches
This product is made to order and is not returnable or cancellable
An IFC400 USB Docking Station + Communication Kit is required and sold separately

Download Specification Sheet

$739.00

Additional Equipment Required

IFC400 USB Docking Station - $ | Add to cart

SKU: NanoTemp125 Categories: Battery Powered Data Loggers, Environmental Data Loggers, Food Temperature Monitoring, Industrial Data Loggers, Industrial Temperature Monitoring, Laboratory Temperature Monitoring, MadgeTech, RTD Data Loggers, Temperature, Temperature Data Loggers

Description

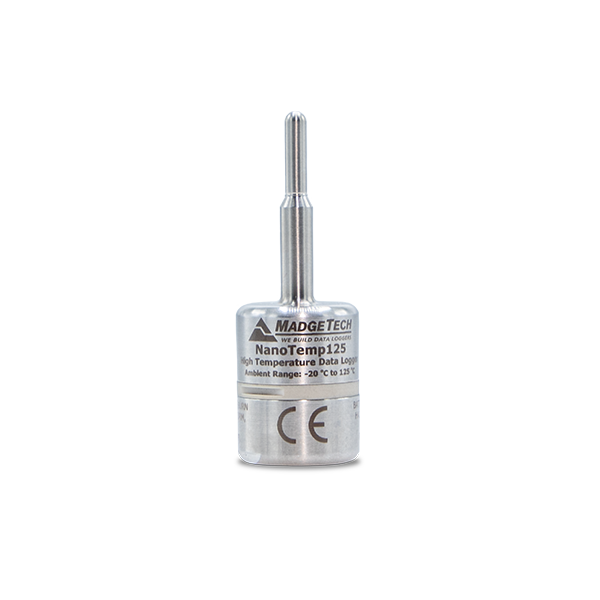

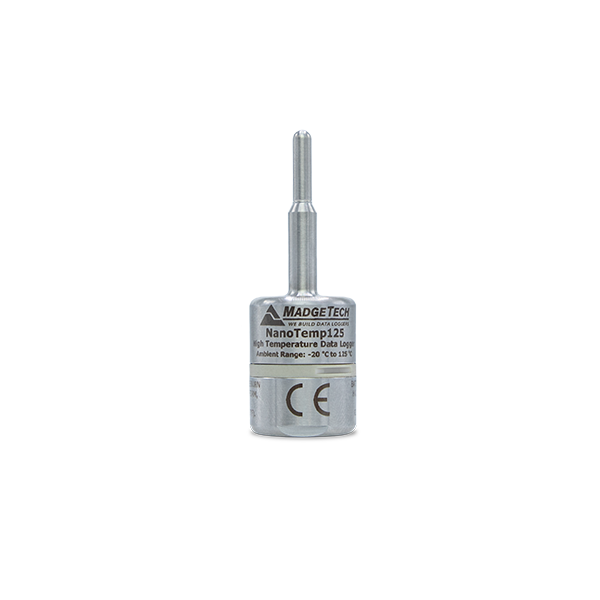

NanoTemp125 High Temperature Data Logger

The NanoTemp125 is a sleek, high precision temperature data logger engineered for the most demanding environments. Perfectly sized for tight spaces, this durable stainless steel logger is fully submersible and thrives in extreme temperatures ranging from -20°C to +125°C. Precision is paramount with the NanoTemp125, offering an accuracy of ±0.1 °C to ensure your data is always reliable.

Despite its compact size, the NanoTemp125 does not skimp on capacity, storing over 32,000 readings. It logs date and time-stamped readings and is equipped with non-volatile solid state memory that safeguards your data, even when the battery runs low.

The NanoTemp125 isn’t just tough—it’s purpose-built for precision in critical applications like autoclave validations. Its compact size allows it to fit effortlessly into tight spaces, ensuring accurate temperature monitoring throughout the sterilization process. Whether you’re validating autoclaves in pharmaceutical production, laboratory settings, or medical device manufacturing, the NanoTemp125 delivers reliable, high-precision data you can trust. Its durable, submersible design makes it ideal for the intense environments autoclave processes demand, ensuring compliance and peace of mind.

The NanoTemp125 is also fully compatible with MadgeTech 4 Software, enhancing your data logging experience with powerful analysis tools right at your fingertips.

Features

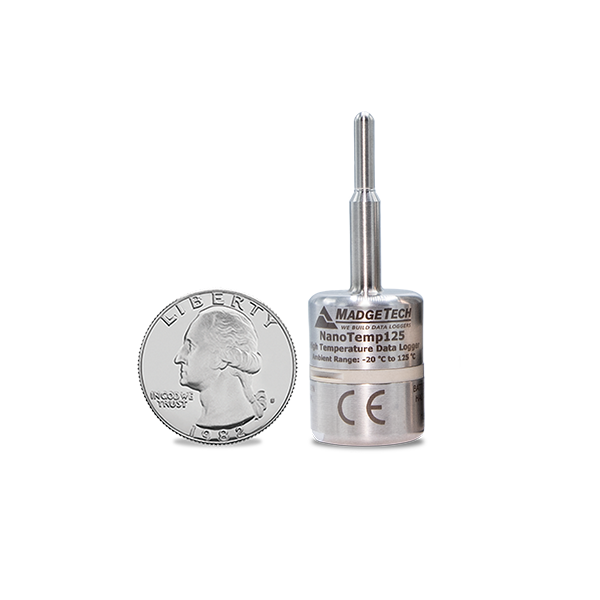

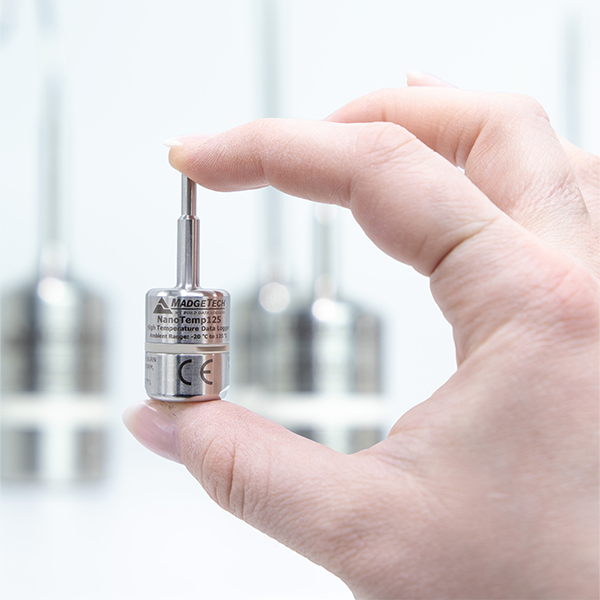

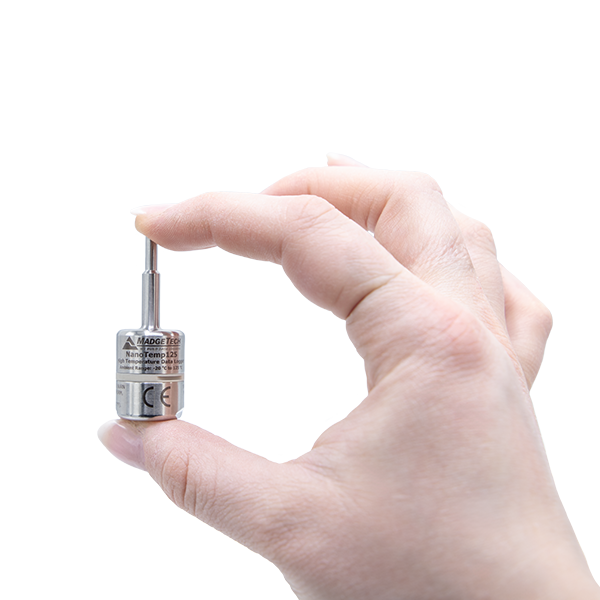

Miniature Size
±0.1 °C (± 0.18 °F) Accuracy
Operates from -20 °C to +125°C
Submersible (IP68)
User Replaceable Battery
Rugged Stainless Steel
Programmable Start & Stop Time
Probe Lengths up to 5.25 inches

Benefits

Designed for tight spaces
Simple Set up and Use
Minimal Maintenance

NanoTemp125 Applications

Autoclave Verification
Implement HACCP Programs
Food Preparation and Processing
Environmental Studies
Well Monitoring
Dishwasher Testing
Pasteurization

Specifications

TEMPERATURE
Temperature Sensor	Internal RTD
Probe Measurement Range	-200 °C to +260 °C (-328 °F to +500 °F)
Probe Measurement Range	BODY OF LOGGER CANNOT EXCEED 125 °C
Temperature Resolution	0.01 °C (0.02 °F)
Calibrated Accuracy	±0.1 °C/±0.18 °F
	(20 °C to +125 °C/68 °F to +257 °F)
	±0.3 °C/±0.54 °F
	(-20 °C to +19.99 °C/-4 °F to +67.98 °F)
GENERAL
Start Modes	Software programmable immediate start Delay start up to 18 months in advance
Stop Modes	Manual or Timed (specific date and time)
Real Time Recording	May be used with PC to monitor and record data in real time
Password Protection	An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Memory	32,512 readings
Trigger Settings	High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers.
Reading in Trigger Settings Mode	6,502 readings
Wrap Around	Yes
Reading Rate	1 reading every second up to 1 reading every 24 hours
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device
Battery Type	Two 3 V high-temperature lithium coin cell battery included; user replaceable
Battery Life	1 years typical
Battery Life	(1 minute reading rate at 25 °C)
Data Format	Date and time stamped °C, K, °F or °R
Time Accuracy	±1 minute/month at 20 °C to 30 °C
Time Accuracy	(68 °F to 86 °F) (Stand alone mode)
Computer Interface	IFC400 OR IFC406 USB docking station and adapter required; 125,000 baud
Operating System Compatibility	Windows XP SP3 or later
Software Compatibility	Standard Software version 4.2.25.16 or later
Software Compatibility	Secure Software version 4.2.24.16 or later
Operating Environment	-20 °C to +125 °C (-4 °F to +257 °F)
Operating Environment	0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
IP Rating	IP68
Dimensions (Body)	0.9 in x 0.7 in dia.
Dimensions (Body)	22.9 mm x 17.8 mm dia.
Dimensions (Probe)	NanoTemp125-1:
	1.0 in x 0.125 in dia. (0.188 in trans. dia.)
	25.4 mm x 3.2 mm dia. (4.8 mm trans. dia.)

	NanoTemp125-2:
	2.0 in x 0.125 in dia.
	50.8 mm x 3.2 mm dia. (4.8 mm trans. dia.)

	NanoTemp125-5:
	5.0 in. x 0.125 in dia.
	133.35 mm x 3.2 mm dia. (4.8 mm trans. dia.)
Weight	NanoTemp125-1: 0.63 oz (18 g)

	NanoTemp125-2: 0.67 oz (19 g)

	NanoTemp125-5.25: 0.71 (20 g)
Material	316 Stainless Steel, PEEK
Approvals	CE

Software

MadgeTech 4 Software

The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
