RHTemp1000IS

Temperature Range: -40ºC to +80ºC
Humidity Range: 0 %RH to 100 %RH (non-condensing)
Software Battery Life Indicator
316 Stainless Steel Enclosure
CE Compliant
Intrinsically Safe Certification
This product is made to order and is not returnable or cancellable
An IFC400 USB Docking Station is required and sold separately

Download Specification Sheet

$449.00

Additional Equipment Required

IFC400 USB Docking Station - $ | Add to cart

SKU: N/A Categories: Battery Powered Data Loggers, Environmental Data Loggers, Humidity, Humidity Data Loggers, Industrial Temperature Monitoring, Laboratory Temperature Monitoring, MadgeTech, Medical Temperature Monitoring, Pharmaceutical Temperature Monitoring, RTD Data Loggers, Temperature Data Loggers, Temperature Humidity Data Loggers

Description

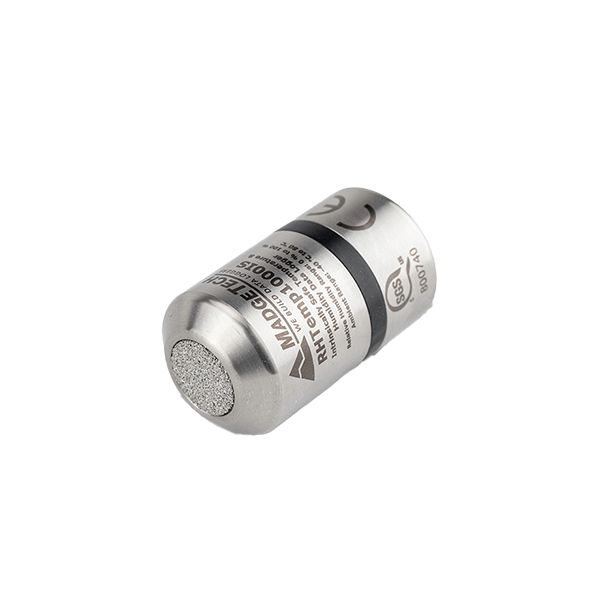

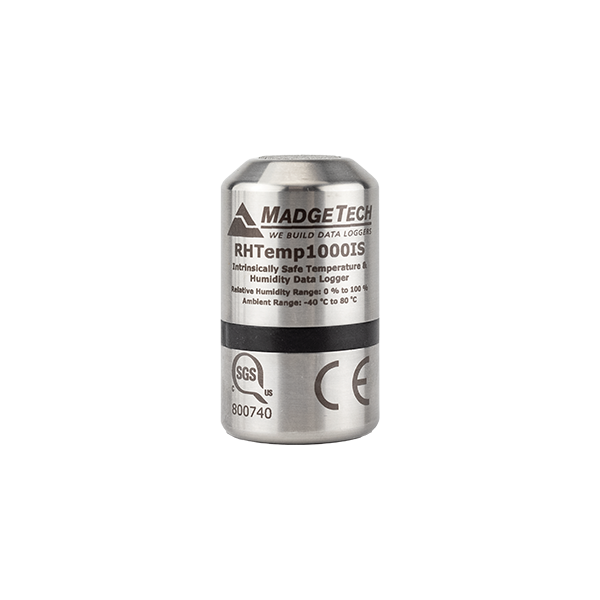

RHTemp1000IS Intrinsically Safe Humidity and Temperature Data Logger

The RHTemp1000IS is an Intrinsically Safe humidity and temperature data logger. It carries hazardous location, intrinsically safe certification in accordance with the latest issue of FM3600, FM3610. This certification makes the device ideal for EtO Sterilization, environmental studies, and numerous other hostile environment applications.

The device can be started and stopped directly from your computer and its small, sleek size allows it to fit almost anywhere. The RHTemp1000IS makes data retrieval quick and easy. Simply insert the device into the IFC400 or the IFC406 USB docking station (sold separately) and MadgeTech’s user-friendly software does the rest The small size of the RHTemp1000IS, allows it to be placed in remote or hard to reach locations. The device now features a battery life indicator allowing users to easily identify low voltage and change batteries when required. This feature maximizes the use of your battery life and is a cost saving efficiency.

The MadgeTech Software is a powerful, analytic tool, available to download for free from our website. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis.

Features

Software Battery Life Indicator
316 Stainless Steel Enclosure
Small, Sleek Design
Fast Response Time
Engraved Label
CE Compliant
Optional Key Ring End Cap

Certified Intrinsically Safe

Class I, II, III, Division 1, Groups A-G,-40 °C < Tamb < +80 °C, T4A
Class I, II, III, Division 2, Groups A-D, F, G,-40 °C < Tamb < +80 °C, T4A
Temperature Class: T4A
CAN/CSA-C22.2 No. 60079-0:15
CAN/CSA-C22.2 No. 60079-11:14

RHTemp1000IS Benefits

Faster Downloads (1 min. full memory)
ISO 17025 Accredited Calibration Certificate Included
Easily Identify Low Battery Voltage

Applications

EtO Sterilization
Environmental Studies
Hostile Environment Monitoring
Medical and Pharmaceutical

Specifications

TEMPERATURE
Temperature Sensor	Resistance Temperature Detector (RTD)
Temperature Range	-40 ºC to +80 ºC (-40 ºF to +176 ºF)
Temperature Resolution	0.01 °C (0.02 °F)
Calibrated Accuracy	±0.5 °C (0 °C to ±50 °C), ±0.9 °F (32 °F to 122 °F)
HUMIDITY
Humidity Sensor	Capacitive Polymer
Humidity Range	0 %RH to 100 %RH (non-condensing)
Humidity Resolution	0.1 %RH
Calibrated Accuracy	±3.0 %RH maximum
Specified Accuracy Range	25 %RH to 75 %RH
	+20 °C to +40 °C (68 °F to 104 °F)
	Hysteresis Error 1 % typical, 3 % Maximum
GENERAL
Start Modes	Software programmable immediate start
	Delay start up to 24 months in advance
Stop Modes	Manual or Timed (specific date and time)
Real Time Recording	May be used with PC to monitor and record data in real time
Password Protection	Yes
Memory	32,640 readings per channel
Wrap Around	Yes
Reading Rate	1 reading every second up to 1 reading every 24 hours
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device and displayed in software
Battery Type	Tadiran TL-2150/S 3.6V lithium battery included, user replaceable in a non-hazardous location
Battery Life	2 years typical at 15 minute reading rate
Data Format	Date and time stamped °C, °F, K, °R; %RH, mg/mL, Dew Point
Time Accuracy	1 minute/month at 25 °C
Computer Interface	IFC400 or IFC406
Operating System Compatibility	Windows XP SP3 or later
Software Compatibility	MadgeTech Standard Software version 4.2.19.1 or later.
	MadgeTech Secure Software version 4.2.18.0 or later.
Operating Environment	-40 ºC to +80 ºC (-40 °F to +176 °F)
	0 %RH to 100 %RH (case properly sealed)
Dimensions	Without Key Ring: 1.67 in x 0.97 in dia. (42.3 mm x 24.6 mm dia.)
	With Key Ring: 1.98 in x 0.97 in dia. (50.2 mm x 24.6 mm dia.)
Weight	Without Key Ring: 2.4 oz (68 g)
	With Key Ring: 2.2 oz (63 g)
Material	316 Stainless Steel/Radel
IP Rating	Not Rated – Caution: Do not submerge this product to retain IS rating
Approvals	CE
	FM Class 3600, latest revision
	FM Class 3610, latest revision
	CAN/CSA-C22.2 No. 60079-0:15
	CAN/CSA-C22.2 No. 60079-11:14

Software

MadgeTech 4 Software

The MadgeTech 4 Software is designed to streamline the process of downloading and reviewing data in a user-friendly interface. The software offers many features and options, allowing for complete customization to satisfy regulatory requirements. MadgeTech 4 Software comes standard with any MadgeTech data logger and free updates are available to download from our website.
