RTR-600BD

TandD RTR-600BD

  • Wireless Battery Charging Cradle
  • Compatible with RTR-600 Series Loggers
  • PC Communication Interface
  • A 9.5% Tariff Surcharge will be added to this item at checkout

$219.00

Normal delivery 1-2 weeks

Get a QuoteGet More Info
SKU: RTR-600BD Categories: , ,

Description

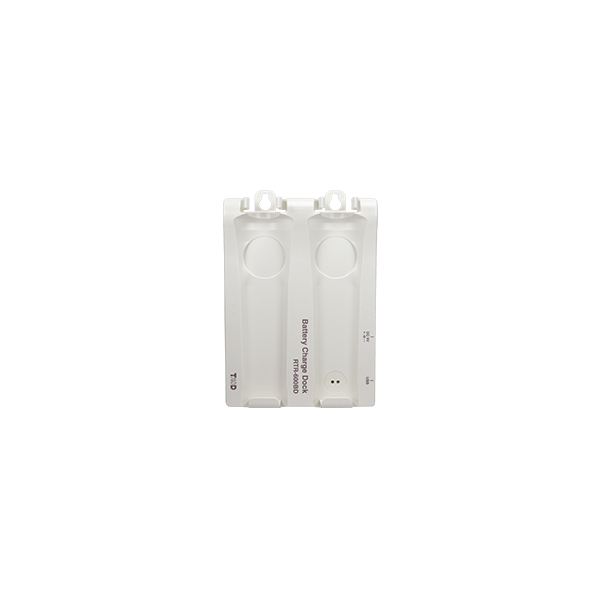

RTR-600BD Communication Interface and Battery Charger for RTR-600 Series Loggers

The RTR-600BD is a PC Communication Interface and Wireless Battery Charging Cradle for use with RTR-602 Wireless Food Core Temperature Data Loggers.

This communication interface cradle is for connecting TandD’s waterproof oil resistant RTR-602 food core temperature data loggers to a PC. It is necessary for making wireless communication settings and registering measurement items, user names and so on. It also includes space enough to simultaneously charge two loggers.

In order to view data recorded with RTR-602 food core temperature data loggers, it is first necessary to setup and register loggers using this interface connected to a PC. Simply rest the logger in the cradle to carry out PC communication and recharge the battery; no cables required!

Specifications

Battery Charge Dock RTR-600BD
Power AC Adaptor AD-05A3
Input Voltage 5V 2A
Communication Interface USB / Optical Communication (For Setup)
Charging Method Electromagnetic Induction Type Non-Contact Charging System
Charging Time (*1) Approx. 70 minutes
Charging Current 700 mA (typical) per Remote Unit
Dimensions H 198.3 mm × W 136 mm × D 56.6 mm (including protrusions)
Weight Approx. 330 g
Operating Environment Temperature: 0 to 40 °C
Humidity: 90 %RH or less (no condensation)
Included Items AC Adaptor AD-05A3, USB Mini-B Cable US-15C, Wall Mount Screw x 3, Manual Set (Warranty Included)
