TandD RTR-500BM

  • Data Monitoring and Access via Mobile (4G) Network

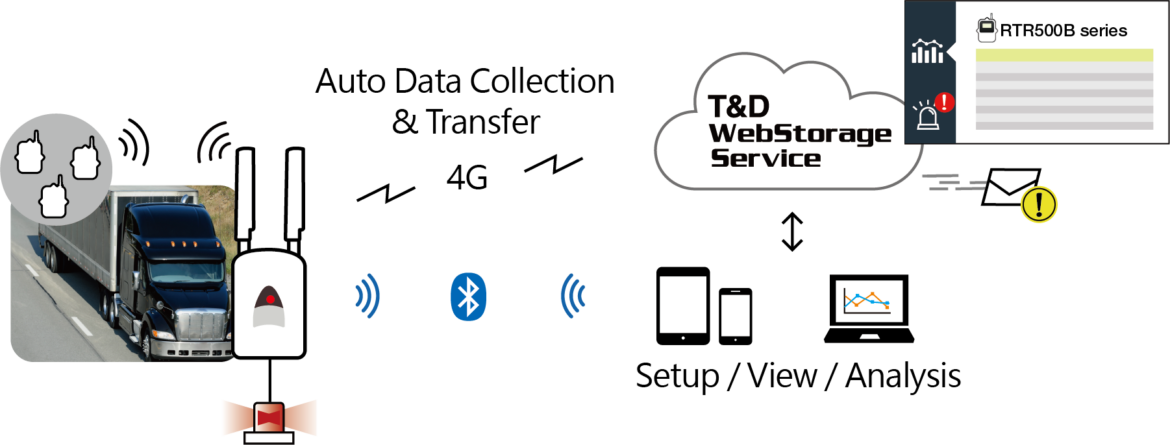

  • Wireless Data Collection from Data Loggers (Remote Units) to RTR-500BM (Base Unit)
  • On-Site Warnings & Alert Notifications to Mobile Devices
  • GPS Function for Location Info
  • Data Access and Monitoring from Smart Phone / Tablet Browser
  • WebStorage Service available

Call for configuration and price. 1-800-956-4437

Get a QuoteGet More Info

SKU: RTR-500BM Categories: , , , , , , , , ,

Description

The RTR-500BM Mobile Base Station collects recorded data from up to 20 RTR-500 Series Remote Units via wireless communication and sends data to the specified E-mail address or FTP server over mobile networks. It can be used anywhere that is within the coverage of a mobile network; expanding coverage for data collection and monitoring, such as to areas where LAN connection is difficult, and to environments where network or PCs are not available, as well as vehicles in transit.

*The RTR-500BM replaces the RTR-500MBS-A model.

With the warning monitoring function, the RTR-500BM Base Unit monitors Remote Units for user-set alarm warnings, and sends warning report mails via e-mail or SMS, enabling users to always stay in the know about changes in measurement readings.

The RTR-500BM is compatible with the T&D Webstorage Service. Remote monitoring of location with GPS is also included.

To use an RTR-500BM, a SIM card from a carrier or mobile network service must be purchased.

Specifications

Compatible Devices Remote Units: RTR501B / 502B / 503B / 505B / 507B
RTR-501 / 502 / 503 / 507S / 574 / 576 / 505-TC / 505-Pt / 505-V / 505-mA / 505-P (*1)
(Including L Type and S Type)
Repeaters: RTR500BC,
RTR-500 (*1)
Maximum Number of Registrations Remote Units: 20 units
Repeaters: 5 units x 4 groups
Communication Interfaces Short Range Wireless Communication Frequency Range: 902 to 928MHz RF Power: 7mW Transmission Range: About 150 meters (500 ft) if unobstructed and direct Frequency Range: 869.7 to 870MHz RF Power: 5mW Transmission Range: About 150 meters if unobstructed and direct LTE Communication LTE-FDD: B2/B4/B12 WCDMA: B2/B5 LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800MHz Bluetooth 4.2 (Bluetooth Low Energy) For Settings USB 2.0 (Mini-B connector) For Settings Optical Communication (proprietary protocol)
Communication Time Data Download Time from Remote Unit (for 16,000 readings)
Via wireless communication: About 2 min.
An additional 30 seconds should be added for each Repeater. (*2)
Does not include communication time from Base Unit to server over LTE.
External Alarm Input/Output
Terminal (*3)		 Input Terminal: Contact Input
Internal Pull-up: 3V 100kΩ
Maximum Input Voltage: 30V
Output Terminal: Photo Mos Relay Output
OFF-State Voltage: AC/DC 50V or less
ON-State Current: 0.1 A or less
ON-State Resistance: 35Ω
Communications Protocol
(*4)		 HTTP, HTTPS, FTP, SNTP
Power AC Adaptor (AD-05A3 or AD-05C1)
External Battery Connection Adaptor BC-0204 (DC 9-38V)
AA Alkaline Battery LR6 x 4
Battery Life (*5) Expected battery life with only AA alkaline batteries:
Approx. 3 days under the following conditions (only one Remote Unit and no Repeaters, downloading data once
a day, sending current readings at 10-min interval)
Dimensions H 96 mm x W 66 mm x D 38.6 mm (excluding antenna)
Antenna Length (Cellular/Local): 135 mm
Weight Approx. 135 g
Operating Environment Temperature: -10 to 60 °C
Humidity: 90 %RH or less (without condensation)
Accessories AA Alkaline Battery LR6 x 4, Antenna CSR-0011 x 2 (Cellular/Local), USB Mini-B Cable US-15C, AC Adaptor AD-05A3
or AD-05C1, Registration Code Label, Manual Set (Warranty Included)
GPS Interface (*6) Connector: SMA Female Jack
Power Supply: 3.3V
SIM Card nano SIM Card (*7)
  1. RTR-500 Series loggers and Repeaters do not have Bluetooth
    capability.
  2. When using RTR500BC as Repeater. Depending upon conditions
    it may take up to an additional 2 minutes.
  3. In order to use the external terminal, please purchase the optional alarm connection cable (AC0101).
  4. Client Function
  5. Battery life depends on several factors, including number of warning reports sent, ambient temperature, radio environment, frequency of communication,and quality of the battery being used. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual batterylife.
  6. In order to use the GPS function (to attach geographical positioning info to current readings data), please purchase a compatible GPS antenna (SMA Male
    Plug)
  7. Please prepare a contracted SIM card (with a minimum speed of 200Kbps) separately.The specifications listed above are subject to change without notice.

WebStorage Service

Free Online Service for Cloud Data Storage

It’s never been so easy to share your recorded data via the Internet! T&D’s free WebStorage Service is perfect for processing and managing data recorded in remote places or for allowing several people to view the same recorded data at their convenience. Users can check the current conditions of data loggers such as battery level and radio signal strength between the Base Unit and Remote Unit. Recorded data can be transmitted to the WebStorage Service from any compatible Tamp;&D product. Data storage capacity is 20MB.

Additionally, the data transmitted to T&D WebStorage Service can be accessed via your browser from anywhere, anytime, as long as an internet connection is available. Mobile device apps are also available for devices running iOS and Android.

Compatible Products

Users can setup automatic data transmission from the following T&D products to the WebStorage Service:
