ThermoVaultX

4 or 8 channel versions
Capable of enduring oven temperatures reaching 350°C (for a duration of up to 30 minutes)
Programmable start time
Ambient and thermocouple channels
Automatic thermocouple linearization
Type K thermocouples and power supply included
This product is made to order and is not returnable or cancellable

Download Specification Sheet

Price range: $1,704.00 through $1,924.00

SKU: ThermoVaultX Categories: Battery Powered Data Loggers, Featured Oven Profiling Application Products, Industrial Temperature Monitoring, MadgeTech, Oven Temperature Profiling, Temperature, Temperature Data Loggers, Thermocouple Data Loggers

Description

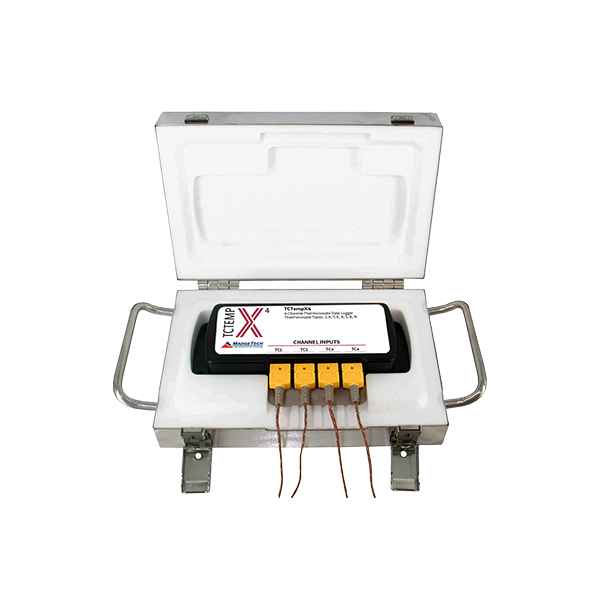

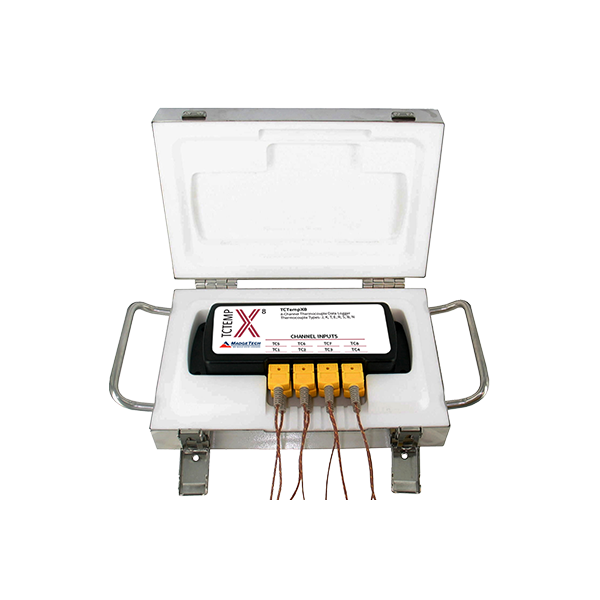

ThermoVaultX Series 4 and 8-Channel Thermocouple Data Loggers

The ThermoVaultX Includes:
(1) TCTempX: Thermocouple-Based Temperature Data Logger
(1) Thermally Insulated Enclosure
(1) Type K Thermocouple

The ThermoVaultX Series is a thermally insulated, battery powered, oven temperature data logger able to withstand extreme temperatures. The ThermoVaultX represents an advanced temperature data logging system designed for oven profiling, featuring thermal insulation and relying on thermocouples. This robust device exhibits remarkable resilience, capable of enduring oven temperatures reaching 350°C (662°F) for a duration of up to 30 minutes when properly sealed. Its construction incorporates a stainless steel enclosure along with external thermocouple probes, ensuring accurate and precise temperature measurements with rapid response times. It is the ideal temperature recording device for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens.

Moreover, the ThermoVaultX seamlessly integrates with the latest MadgeTech 4 Software, simplifying tasks such as initiating, halting, and retrieving data. The software furnishes a user-friendly interface that offers graphical, tabular, and summary data for in-depth analysis, and allows for the customization of units for viewing engineering data. MadgeTech 4 software easily downloads the data to a computer, where the readings may be displayed in degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. The software allows the user to view all data points or a range of data points and a summary of the data being viewed for calculations such as Mean Kinetic Temperature (MKT). If additional analysis of the data needs to be performed, the data can be easily exported to Excel® by simply clicking a button.

Features

Programmable start time
Reusable
Convenient size
User-friendly
Ambient and thermocouple channels
Automatic thermocouple linearization
Type K thermocouples and power supply included

Applications

Extreme temperature monitoring
Oven profiling
Powder coating cure ovens
Wet coating cure ovens
Batch ovens
Conveyor ovens
Implement HACCP programs

Specifications

TEMPERATURE
Temperature Range	-20 °C to +60 °C (-4 °F to +140 °F)
Temperature Resolution	0.01 °C (0.018 °F)
Calibrated Accuracy	±0.5 °C (0 °C to 50 °C)
REMOTE CHANNELS
Remote Channel Thermocouple Types	J, K, T, E, R, S, B, N
Thermocouple Connection	Female subminiature (SMP)
Cold Junction Compensation	Automatic, based on internal channel
Thermocouple	Range (°C)	Resolution	Accuracy*
J	-210 to +760	0.1 °C	±0.5 °C
K	-270 to +1370	0.1 °C	±0.5 °C
T	-270 to +400	0.1 °C	±0.5 °C
E	-270 to +980	0.1 °C	±0.5 °C
R	-50 to +1760	0.5 °C	±2.0 °C
S	-50 to +1760	0.5 °C	±2.0 °C
B	+50 to +1820	0.5 °C	±2.0 °C
N	-270 to +1300	0.5 °C	±2.0 °C
MAXIMUM EXPOSURE TIME
Ambient Temperature	Maximum Duration in Minutes
100 °C (212 °F)	110
150 °C (302 °F)	62
200 °C (392 °F)	45
250 °C (482 °F)	35
260 °C (500 °F)	33
300 °C (572 °F)	30
350 °C (662 °F)	25
GENERAL
Start Modes	Push button start and software programmable immediate start or delay start up to six months in advance
Memory (all channels enabled)	4-channel: 524,032 readings per channel
	8-channel: 262,016 readings per channel
LEDs	1 per channel and 2 status LEDs
Reading Rate	4 Hz up to 1 reading every 24 hours
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device
Battery Type	9 V lithium battery included, user replaceable
Battery Life	18 months typical
Data Format	Date and time stamped °C, °F, K, °R, mV, V
Time Accuracy	±1 minute/month
Computer Interface	USB-A to micro USB cable (included); 460,800 baud
Operating System Compatibility	Windows XP SP3 or later
Software Compatibility	Standard Software version 4.2.17.0 or later
	Secure Software version 4.2.16.0 or later
Internal TCTempX	-20 °C to +60 °C
	0 %RH to 95 %RH non-condensing
ThermoVaultX System	-20 °C to +350 °C
	0 %RH to 95 %RH non-condensing
Dimensions	12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm)
	[Includes handles, brackets and front enclosure latches]
	9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm)
	[Enclosure case only. Excludes handles, brackets and latches]
Weight	4-channel: 8.85 lb (4.01 kg)
	8-channel: 8.98 lb (4.07 kg)

*Thermocouple accuracy specified with 24 AWG diameter thermocouple wires.

BATTERY WARNING: BATTERY MAY LEAK, FLAME OR EXPLODE IF DISASSEMBLED, SHORTED, CHARGED, CONNECTED TOGETHER, MIXED WITH USED OR OTHER BATTERIES, EXPOSED TO FIRE OR HIGH TEMPERATURE. DISCARD USED BATTERY
PROMPTLY. KEEP OUT OF REACH OF CHILDREN.

The included USB cable and power adapter should not to be used at temperatures above 40 °C.
