Influx K-IEPE

  • Up to 8 K-type connections at up to 20 Hz sampling rate
  • Instrumentation data time synchronized with recorded vehicle network data via CAN
  • Combined Voltage, Thermocouple and P.W.M./Digital measurements
  • Stackable with all K-series instrumentation modules
  • Cold junction compensation for accurate thermocouple measurement
  • Supplied with configuration software, Influx K-Cal for Windows® and configurable via a DBC file
  • An 8% Tariff Surcharge will be added to this item at checkout

$625.00

Normal delivery 1-2 weeks

Get a QuoteGet More Info
SKU: INF2213 Categories: ,

Description

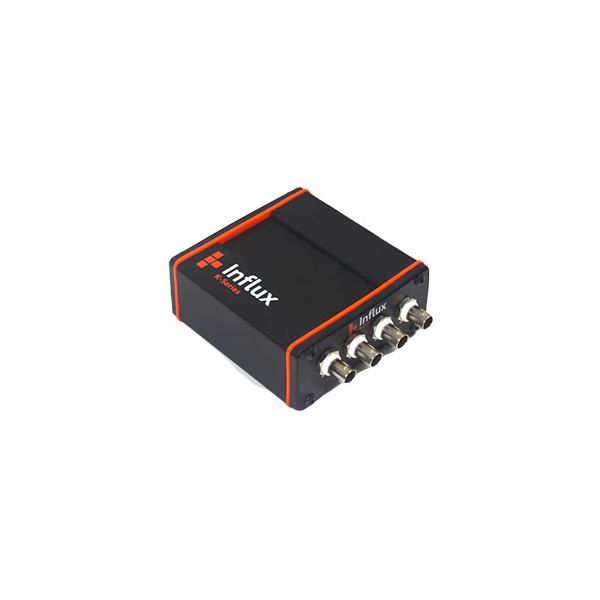

Influx K-IEPE Module

The module is designed to connect Influx IEPE sensors to a K-Box or K-AN8 voltage measurement device that normally cannot support IEPE sensors.

The K-IEPE powered module simply enables IEPE sensors to be connected via the BNC terminals and will output the signal voltages to Analogue measurement device.

Calibration and sampling rates can be configured using the freely distributed K-Cal software.

Key Features

  • Influx K-IEPE Connects to the K-Series K-Box/K-AN8 via the Analogue inputs
  • Refresh rates achievable (4 channels 1kHz)
  • ABS enclosure

Advantages

  • Wide frequency range
  • Linear amplitude characteristics in wide dynamic range
  • Ability to operate in severe ambient conditions (temperature, humidity, radiation and magnetic fields)
  • High mechanical reliability and durability at expense of moving parts in the sensor
  • High vibration and shock resistance
  • No need of other power supply for sensors
  • Compact structure and a large ratio of sensitivity to mass

Specifications

Technical Data Description
Measurement Inputs 4
Internal resolution 18 Bit
Internal sampling rate per channel 6.25kHz
Measurement data rate per channel 4 channels: 1kHz. CAN bus: 1Mbit/s
SW input filter A digital filter in the ADC module is automatically adjusted to the sampling rate
High pass filter 13.8Hz
Bandwidth 21.8Hz
Operational safety -0.7V to +24V permanent, additional
Device safety -0.7V to +24V permanent, additional ESD protection
Input impedance >10K
Broken sensor detection Yes
Typical SNR@ 30kHz Band Width Sampling @6.25Hz: 102dB
Linearity ADC ±0.75 LSB
Current source 5.1mA ± 2%
Voltage 24V
Output power Maximum total (for 4 channel) current: 60mA
Channel/Power supply 1000 VDC minimum
Sensor excitation/ power supply 1000 VDC minimum
CAN channel 1000 VDC minimum
CAN power supply CAN and power are galvanically connected
Configuration Configuration with K-Box Cal application by company protocol
Power Supply 4.SV to 36V DC
Housing ABS
Dimensions L 115mm x H 26mm x W 105mm
Weight 370g
Protection Class IP65
CAN/Power Supply Two 9-pin D-Type connections with duplicate signals
Signal Inputs BNC Connector
Operating Temperature Range -40degC to +8SdegC

Software

K-CAL

K-CAL is a freely distributable Windows PC application that accompanies all the K-Series products from Influx. K-Cal software is specifically designed to ensure you harness the full potential of all the K-series devices with precision and convenience.

Effortlessly configure your connected K-Series device using our user-friendly application K-CAL, or explore data analysis with the dynamic live view function.

Influx K-Cal offers powerful features that enable you to set byte orders, adjust unit measurements, set baud rates, and optimize power consumption through configurable sleep modes.

K-CAL lets you do everything from the unified export of DBC files for post-processing to real-time data visualization on the oscilloscope to saving and exporting that data from the oscilloscope.
