RHT-XS
Novus RHT-XS - Image 2
Novus RHT-XS - Image 3

Novus RHT-XS

  • Temperature Range: -40 to 120 °C
  • Humidity Range: 0 to 100 % RH (non-condensing)
  • Dew Point Range: -100 to 103 °C
  • Temperature Accuracy: ± 0.4 °C @ 25 °C
  • Humidity Accuracy: ± 3 % RH @ 25 °C
  • Isolated Analog Inputs
  • IP65 Rated Housing
  • SigNow software for Windows or Android

Call for configuration and price. 1-800-956-4437

Get a QuoteGet More Info

SKU: 8803556700 Categories: , ,

Description

Novus RHT-XS Temperature and Humidity Transmitter

The Novus RHT-XS transmitters have highly accurate and stable sensors for measuring relative humidity and temperature. The measured values are converted into 4 to 20 mA output signals that are linearly related to their readings. Since they are microprocessor-based devices, they can be configured using the TxConfig-USB communication interface and the SigNow app or software, which is available for Android and Windows. The outputs can be configured to retransmit temperature, relative humidity, or dew point.



Specifications

Humidity Measurement Configurable between 0 and 100 % RH
Temperature Measurement Configurable between -40 and 120 °C
Dew Point Measurement Configurable between -100 and 103 °C
Outputs 4-20 mA model: 4-20 mA or 20-4 mA, 2-wire type
0-10 Vdc model: 0-10 Vdc / 2 mA max
OUT1 and OUT2 Resolution 4-20 mA model: 0.0008 mA
0-10 Vdc model: 0.003 V
Output Isolation 4-20 mA model: Isolated outputs
0-10 Vdc model: No isolation
Probe Material Polyethylene (PE)
Process Thread Types 1/2″ BSP, 1/2″ NPT
Cable Length 3m
Protection Index Electronic module housing: IP65
Sensor housing: IP40
Certifications CE Mark
Internal Protection Against Reversal Polarity of Voltage Supply

Software

SigNow PC

Software for Sensors and Transmitters Configuration

Intuitive, the SigNow Software makes it possible to quickly and easily configure NOVUS transmitters. The software allows you to save the configuration to a file to be used as a backup or to be sent to other devices.
It has a diagnostic function to check if the equipment is reading the process variable correctly.

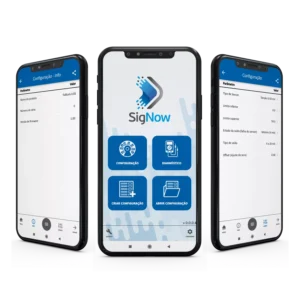

SigNow Mobile

App for Sensors and Transmitters Configuration

Intuitive, the SigNow Mobile application makes it possible to quickly and easily configure NOVUS transmitters.
The app allows you to save the configuration to a file to be used as a backup or to be sent to other devices.
It has a diagnostic function to check if the equipment is reading the process variable correctly. The application allows the mobile device itself to power the device to be configured, through a USB OTG adapter, facilitating use in the field.

Downloads

RHT-XS Operating Manual – 5/8/2024 (PDF file)

CE Declaration of Conformity (PDF file)

Temperature & Humidity Transmitters Selection Guide (PDF file)
